SFP to RJ45 Unmanaged Industrial Switch 48V POE Media Converter
Unmanaged Industrial SFP Converter Gigabit SFP to RJ45 Converter
48V POE Media Converter
Overview
NUFIBER 10/100/1000Base-TX(PoE) to 1000Base-FX Industrial Media
Converter, extends communication distance with stable performance
via fiber optic wire, in which the extended distance could be up to
2km with the NF511GP-SC2, up to 20km with the NF511GP-SC20 .
The NF511GP series is specifically equipped with durable components
and strong housing case to operate reliably in electrically harsh
and climatically demanding environments. The industrial level media
converter provides a high level of immunity to electromagnetic
interference and heavy electrical surges which are usually found on
plant floors or traffic control cabinets on sidewalk. Being able to
operate under the temperature range from -40℃ to 85℃ allows the
NF511GP series to be placed in almost any difficult environment.
NUFIBER NF511GP 10/100/1000Base-TX to 1000Base-FX Industrial Media
Converter series efficiently converts data between
10/100/1000Base-TX and 1000Base-FX network. The NF511GP series
provides the flexibility to all kinds of 10/100/1000Mbps Ethernet
Media on RJ-45 port and performs highly stable fiber performance.
The NF511GP series is packaged in a compact IP40 case that allows
either DIN rail or panel mounting to have efficient usage of
cabinet space. It provides an integrated power supply with a wide
range of voltages for worldwide operation. It also offers
dual-redundant, reversible polarity 12V DC to 52V DC power supply
inputs for high availability applications requiring dual or backup
power inputs.
Features
Interface
1-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/
MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF
1-port 1000Base-Fx interface SC/FC/ST/SFP
Multi-Mode up to 2km
Single-Mode up to 20km/40km/60km/80km
Industrial conformance

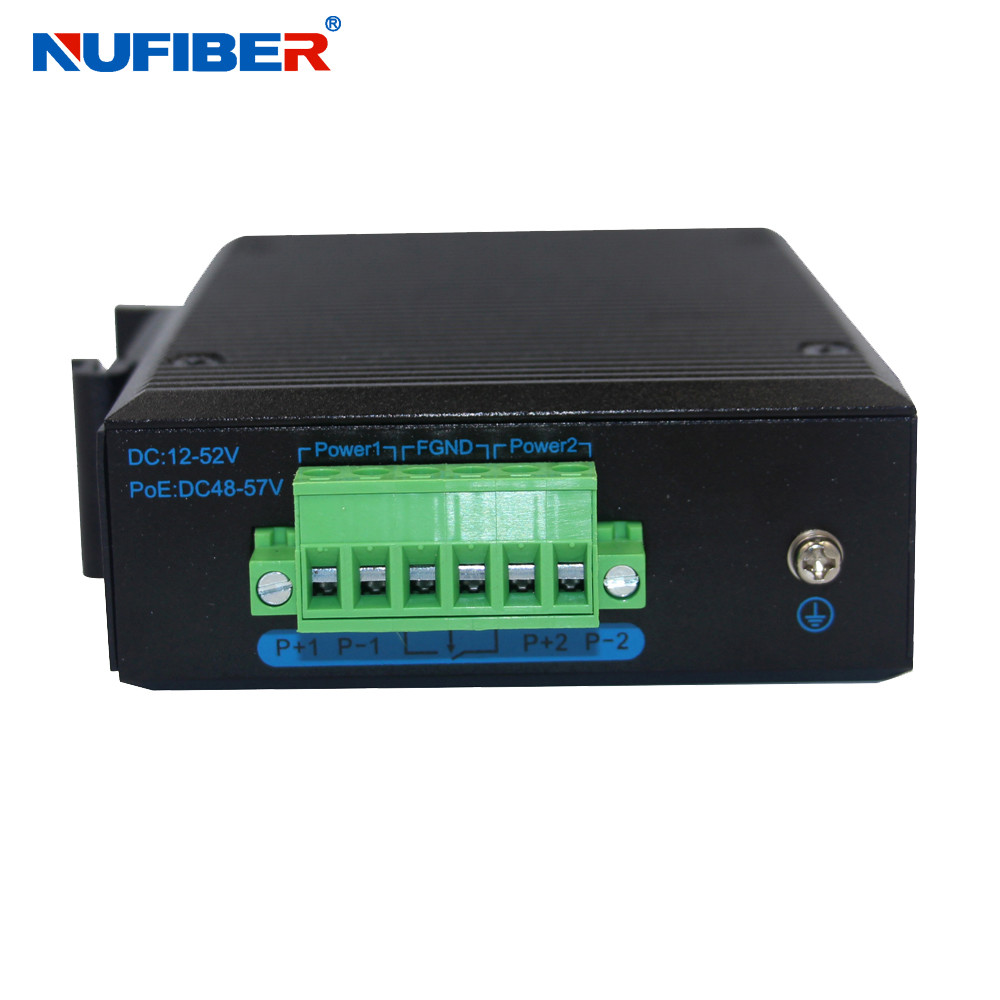

48V to 57V DC, redundant power input
-40℃ to 85℃ operating temperature
IP40 aluminum housing
Supports 6KV DC Ethernet ESD protection
Supports 6KV DC EFT protection for power line
Free Fall, Shock and Vibration Stability
DIN-rail design
Technical Specification
| Model No. | NF511GP-SC2 / NF511GP-SC20 / NF511GP-SFP |
| 10/100/1000Base-TX Port | 1 port RJ-45 auto-MDI / MDI-X |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-8 port support PoE |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
| PoE port Auto detect AF/AT devices |
| Output Voltage: DC48V |
| Power Pin Assignment:1/2+;3/6- |
| Power Type: End-span( Mid-span optional) |
| 1000Base-FX Port | NF511GP-SC2: 1 SC interface NF511GP-SC20: 1 SC Interface NF511GP-SFP: 1 SFP Slot |
Fiber Port Type | NF511GP-SC2: SC / multi-mode ,up to distance 2km ; NF511GP-SC20: SC / single-mode ,up to distance 20km ; NF511GP-SFP: Vary on module |
Optical Frequency | NF511GP-SC2: 1310nm NF511GP-SC20: 1310nm NF511GP-SFP: Vary on module |
Performance Specification | Bandwidth: 14Gbps
Packet Buffer Memory:1.2Mbit
Packet Forwarding Rate:10.5Mpps
MAC Address Table: 2K |
| Installation | DIN rail |
| Maximum Frame Size | 9000bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full
duplex |
| Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
| Power Input | 48 to 57V DC redundant power |
| Power Consumption | < 3 watts |
| Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Certification | CE FCC Rohs compliance |
| MTBF | >300,000hours |
| Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
| Weight | Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment
| Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
| Warranty | 3 Years |
Ordering information
| NF511G-SFP | Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF512G-SFP | Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF514G-SFP | Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF524G-SFP | Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF518GF-SFP | Industrial 1x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type,
DC 10~48V, exclude power adapter and SFP module |
| NF528GF-SFP | Industrial 2x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type,
DC 10~48V, exclude power adapter and SFP module |
| NF518G-SFP | Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail
type, DC 10~48V, exclude power adapter and SFP module |
| NF528G-SFP | Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail
type, DC 10~48V, exclude power adapter and SFP module |

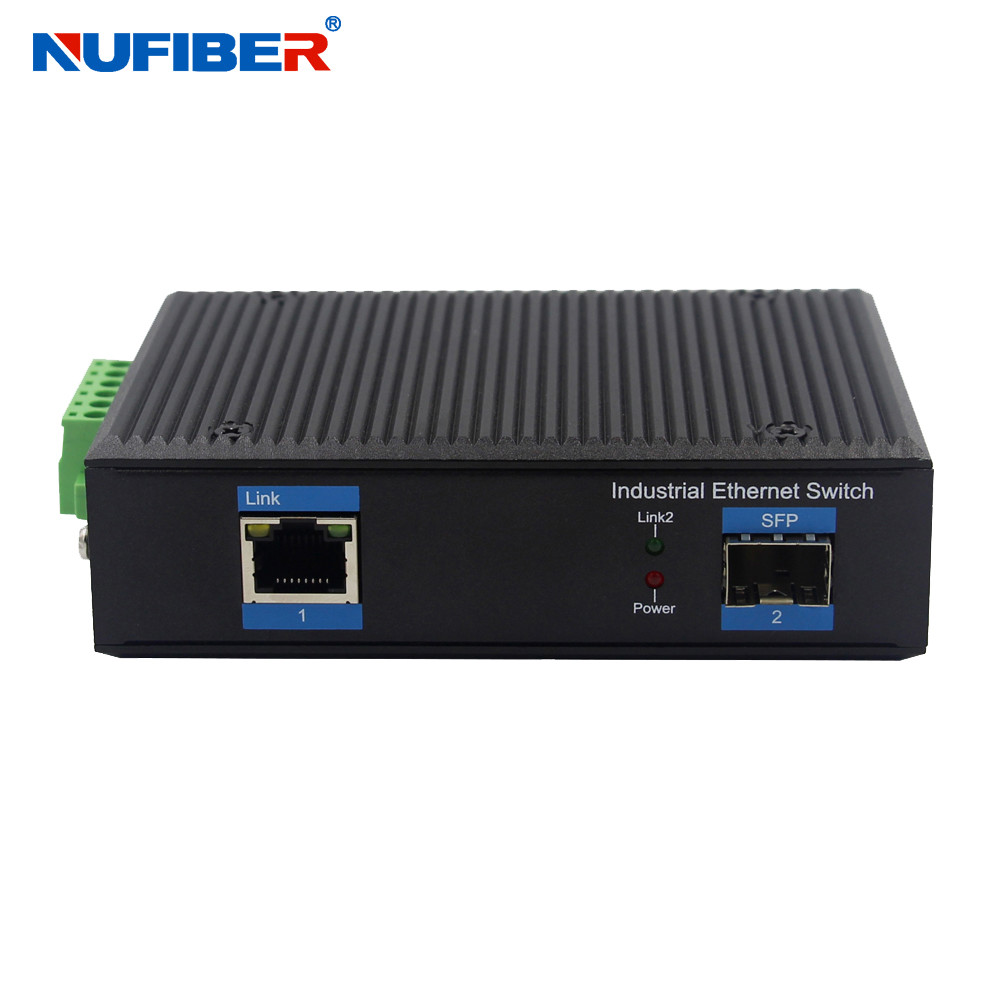

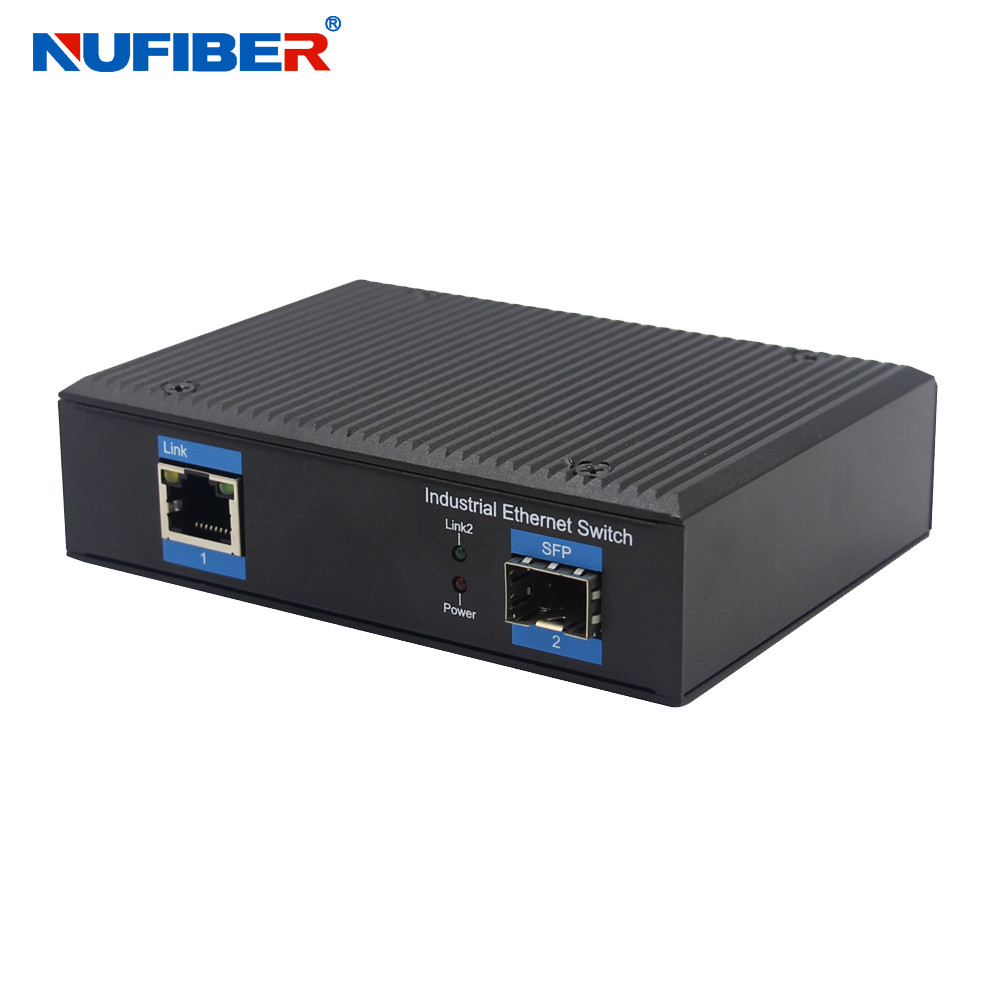

Product Picture
