Mini Type DVI to Fiber Extender 1080P 2Core to Fiber Converter
1000m LC DC5V1A
Single mode 2 core LC 1000meters
Description:
NF-201SB-TR optical DVI module transmits 2 channels optical signal.
The DVI NF-201SB-Tx and DVI NF-201SB-Rx are fiber optic
transmitter/receiver units that extend DVI signals up to 3,280'
(1000 meters) using two Single-mode fiber optics cables. The
transmitter/receiver pair can handle DVI video signals with
resolutions up to 1920 x 1200 or 1080p @ 60 Hz.
The transmitter plugs directly into display device to capture and
store the display device’s EDID(extended display identification
data). Automatic EDID programming features make the installation of
NF-201SB more simple and flexible to apply to any multi-resolution
display system.
In order to facilitate your usage, the default setting have
finished UXGA EDID programme before delivery.
Features:
1) Transmits dual link DVI-D signals up to 1000 meters over two
single-mode fiber optic cables
2) Long distance image transmission;
The highest resolution:1920×1200 @60Hz;
The longest transmission distance: 1000m;
3) High resolution and image quality
4) No RF interference by optical fiber
5) Class 1 laser product complies with EN 60825-1
6) Small form factor – for easy connection and placement.
7) EDID learning for the support of any DVI display device.
8) No software to install.
Environmental
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~+70°C
Application:
◆ Digital Signage
◆ LED signboards in streets and in stadiums
◆ Medical Imaging Equipment
◆ Airplane On-board Video System
◆ Home Theater
◆ TV Broadcast Station
◆ Conference Room Video Equipment
Specification:
| Video |
| DVI Compliance | DVI-D |
| HDCP Compliant | No |
| Distance | 500 meters |
| Max Resolution | 1920*1200@60Hz |
| Connectors |
| TX Connectors | (1) DVI in, (2)LC |
| RX Connectors | (1) DVI out, (2) LC |
| Mechanical |
| Dimensions | 64.5 x 40.6 x 14.5mm(L/W/H) |
| Weight | 30g |
| Power |
| Power Supply | Input: 100~ 240 VAC, 50 ~ 60Hz |
| Output: 5V 1A DC |
| Environmental |
| Operation Temperature | 0 ~ +55°C |
| Storage Temperature | -20 ~ +70°C |
| Relative Humidity | 5~95% RH (no condensing) |
Ordering Information
| Model Number | Description |
| NF-101SB-T/R | DVI Extender Single core LC*1 Single mode 1000meters |
| NF-101MB-T/R | DVI Extender Single core LC*1 Multi mode 500meters |
| NF-201SB-T/R | DVI Extender Single core LC*2 Single mode 1000meters |
| NF-201MB-T/R | DVI Extender Single core LC*2 Multi mode 500meters |
| NF-401SB-T/R | DVI Extender Single core LC*4 Single mode 1000meters |
| NF-401MB-T/R | DVI Extender Single core LC*4 Multi mode 500meters |
Connection Diagram

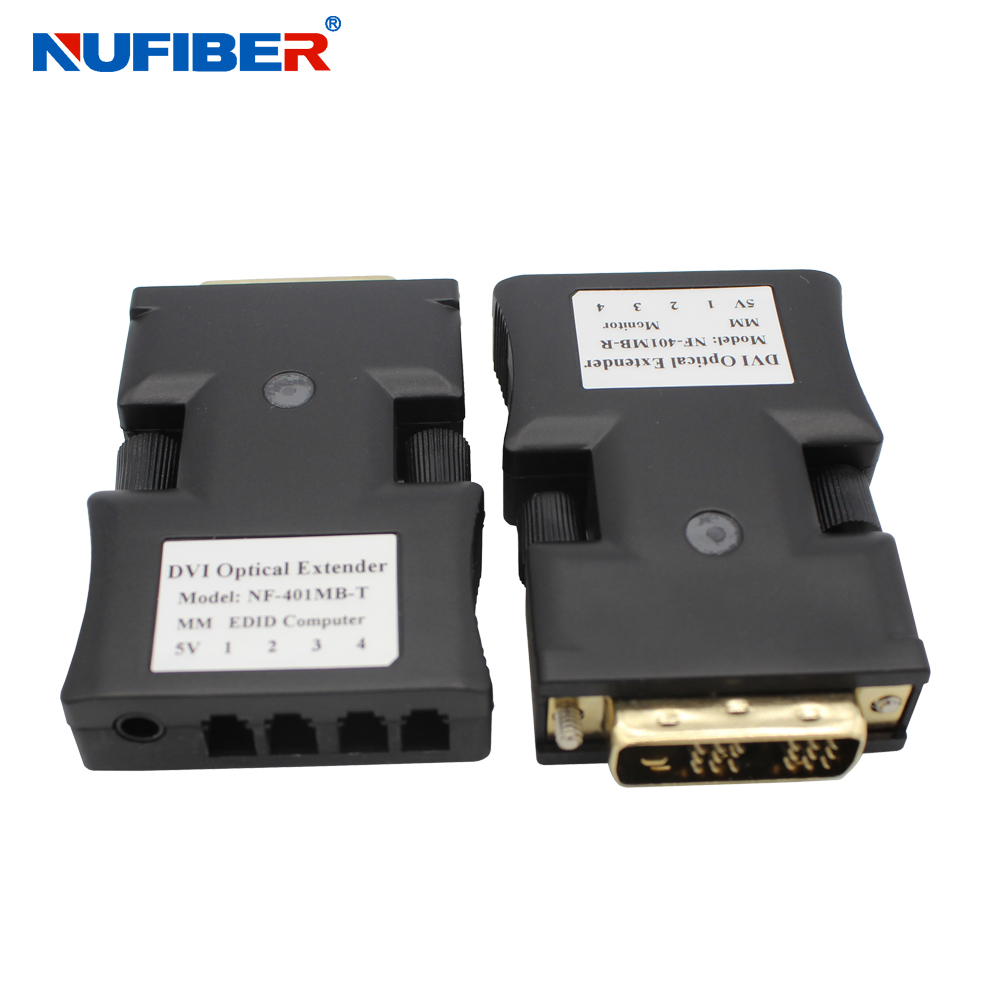

Product Show
