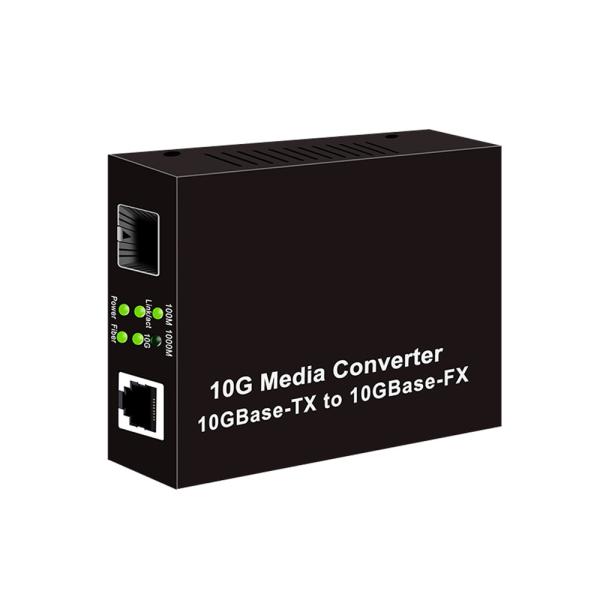

10G SFP+ to RJ45 Media Converter 10G Optical SFP Media Converter

Overview

This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Key Features

◆ Support Jumbo Frame

◆ Transparent Transport and very low delay

◆ Connection between fiber to copper or fiber to fiber 10G Ethernet equipment

◆ Can be applied in Telecommunication room, R&D laboratory, Data center, etc

◆ Support ITUT prescribed DWDM/CWDM wavelength

◆ Support hot plugging

◆ Full State Led display

◆ Easy installation

Technical Specifications

◆ Protocols: IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

◆ Interface Type: RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP

◆ Connector: UTP: RJ-45, 1G/10Gbps; Fiber: SFP+ or XFP

◆ Cable :

UTP cable: Cat 6a (the max distance up to 100m)

Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m)

singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)

◆ Power: AC 220V(170-260V) 50Hz; DC 5V,3A

◆ Ambient temperature:0 ～ +50℃

◆ Storage temperature:-20 ～ +70℃

◆ Humidity:5% ～ 90%

◆ Dimensions:External Power:14.4*10.3*3.2CM

Order Information

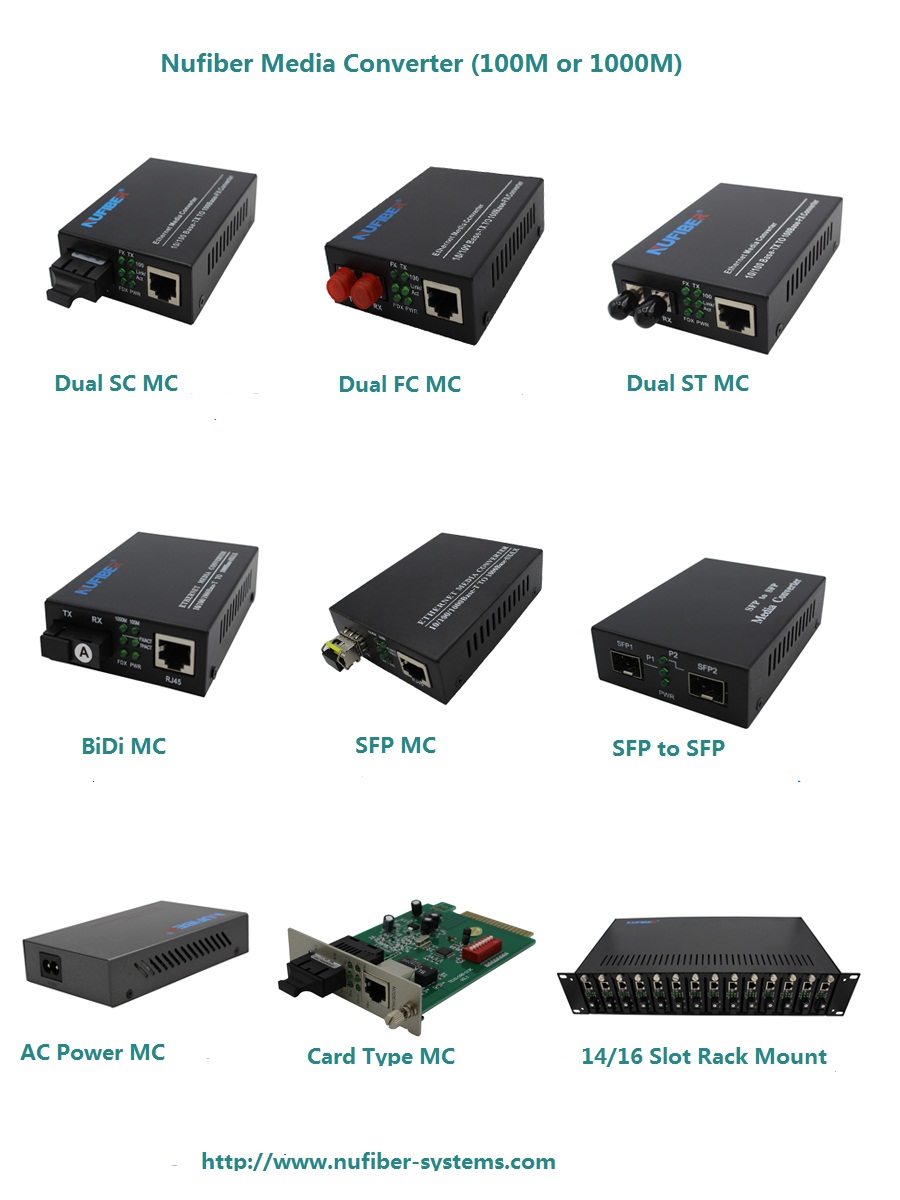

Products show

Shipping and Packaging
