POE Media Converter 1*10/100/1000M POE RJ45 to 1*100/1000M SFP slot
with External power supply DC52V/0.7A/36W
Description:
POE Media converter with 1x10/100/1000Mbps Auto-Negotiation POE
RJ45 and 1x100/1000Mbps Fiber SFP port. The products support
IEEE802.3af/at power supply standard, maximum output power Up to
25.5 Watts for POE, Plug and Play, no need to convert by software
and network protocol,Easy installation and use.Adopt No fan, low
power design. Meet the needs of the site and provide a reliable and
convenient solution for the network of Ethernet devices for
users.The product apply with FCC and CE standards.
Spicification
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX |
| IEEE802.3z 1000BASE-TX |
| IEEE802.3x Flow Control |
| IEEE802.3af Power over Ethernet |
| PoE power | 15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and
7/8(-) |
| Cable: UTP cat.5 or higher |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m |
| Distance | Multi mode & Dual Fiber 550M |
| Single mode & Single Fiber:20/40/60/80/120KM |
| Data rate | 10/100/1000Mpbs |
| Connector | 1 RJ45 +1 SC/FC/ST/LC(SFP Slot) |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC52V/0.7A/36W |
| Power Consumption | <8w |
| Temperature | 0~50℃(Operating) -20~70℃(Storage) |
| Humidity | 5%~90% |
| Dimension | 90x70x26mm |
Features:
1, Support IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;
IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af;
IEEE802.3at;
2, Support 10/100/1000Mbps half-duplex/full-duplex mode and auto
MDI/MDIX;
3, Transmission distance:
Multimode(MM): Up to 0.55KM Max;
Singlemode(SM): Up to 120KM Max；
4, POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)；
5, RJ45 port support direct and cross automatic recognition
function (AUTO-MDIX);
6, Fanless design, its own low heat, work stability and durability
stronger;
7, Trouble-free working hours (MTBF)> 50,000 hours, in line with
carrier-class operating standards;
Ordering Information
| Model | Description | Fiber Mode | Wavelength | Distance | Connector |
| NF-PSE5201-C02 | 10/100Base-Tx to 100Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm |
| NF-PSE5201-C20 | 10/100Base-Tx to 100Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201-C20A/B | 10/100Base-Tx to 100Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| Tx:1550nm/Rx1310nm |
| NF-PSE5201-SFP | 10/100Base-Tx to 100Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
| NF-PSE5201G-C02 | 10/100/1000Base-Tx to 1000Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm |
| NF-PSE5201G-C20 | 10/100/1000Base-Tx to 1000Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201G-C20A/B | 10/100/1000Base-Tx to 1000Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| NF-PSE6301-SFP | 10/100/1000Base-Tx to 100/1000Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |

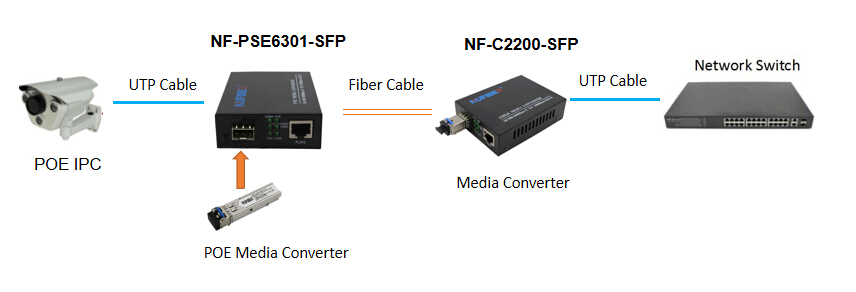

Connection Diagram
Product Show
