Fast Fiber Media Converter 10/100M Fiber Optic to RJ45 Media
Converter FC connector DC5V
Description
The NF-C570 series, the fast Ethernet media converters, featuring
1-fiber transmission with Wavelength Division Multiplexing (WDM)
technology, utilize fiber optics to extend the physical distance
range of typical Ethernet link to 20km-120km.It’s often applied in
school, cyber bars, offices, and telecommunication networks.
Key Features
1 Using 1310/1550nm or 1550/1310nm single fiber TX and FX
integrative module, performing stable.
2 Using particular switch chip design with 1M SSRAM buffer, 2K MAC
address list.
3 Auto learning, auto updating, auto stocking and auto
transmitting.
4 Ethernet 10 Base-T or 100 Base-TX to 100 Base-FX optical medium
transition.
5 IEEE 802.3, IEEE802.3U, IEEE802.3X, IEEE802.3d is available.
6 Full duplex and semi duplex is available with auto negotiation.
7 Providing 10Mbps and 100Mbps auto negotiation.
8 Good optical FX characteristic and TX characteristic to ensure
stability of data transmitting, long lifespan.
9 Providing long-distance TX and FX link confirmation, full-duplex
/ semi duplex, speed designation LED>
10 Providing RJ-45, NIC and HUB, using NIC to connect with computer
internet card or using HUB to
connect with switch.
11 All inside power design with small shell, dimension at
95mm×70mm×25mm.
12 Inside power : 2.5W (Input : AC140~260V)
13 Working time without any trouble is more than 50 thousand hours,
according with telecommunication standard.
14 Good after-sale service, providing quality guarantee for 1 year
and eternal amending service.
Applications
► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► 10/100 Mbps Ethernet Media Converter
► High Speed Computer Links
Technical Specifications
| Parameters | Specifications |
| Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Data Transfer Rate | 100Mbps: 148,800 pps
10Mbps: 14,880 pps |
| Wavelength | Multi-mode: 850 nm or 1310nm
Single-mode: 1310 nm , 1550 nm |
| Transmission Distance | Fiber:
Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)
Single-mode: 25/40/60/100/120 km
UTP:
Cat. 3/4/5/6: 100 m |
| Port | One RJ45 port
One Fiber port (ST/SC/FC Optional, LC:SFP Module) |
| MDI/MDI-X | Auto selection |
| LED Indicator | PWR: Green Illuminated to indicate unit is operating under normal
operation
TX LNK/ACT: Green Illuminated indicates receiving link pulses from
compliant copper device and flashes when data being sent / received
FX LNK/ACT: Green Illuminated indicates receiving link pulses from
compliant fiber device and flashes when data being sent / received
100M: Green Illuminated when data packets are being transmitted at
100 Mbps |
| Power Supply | Outside: 5 V DC 1 A
Built-in: 100 V to 240 V AC 50 Hz to 60 Hz |
| Operating Temp | 0 °C to +70 °C |
| Storage Temp | -20 °C to +80 °C |
| Storage Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95 mm × 70 mm × 25 mm |
| Net Weight | 0.165 kg |

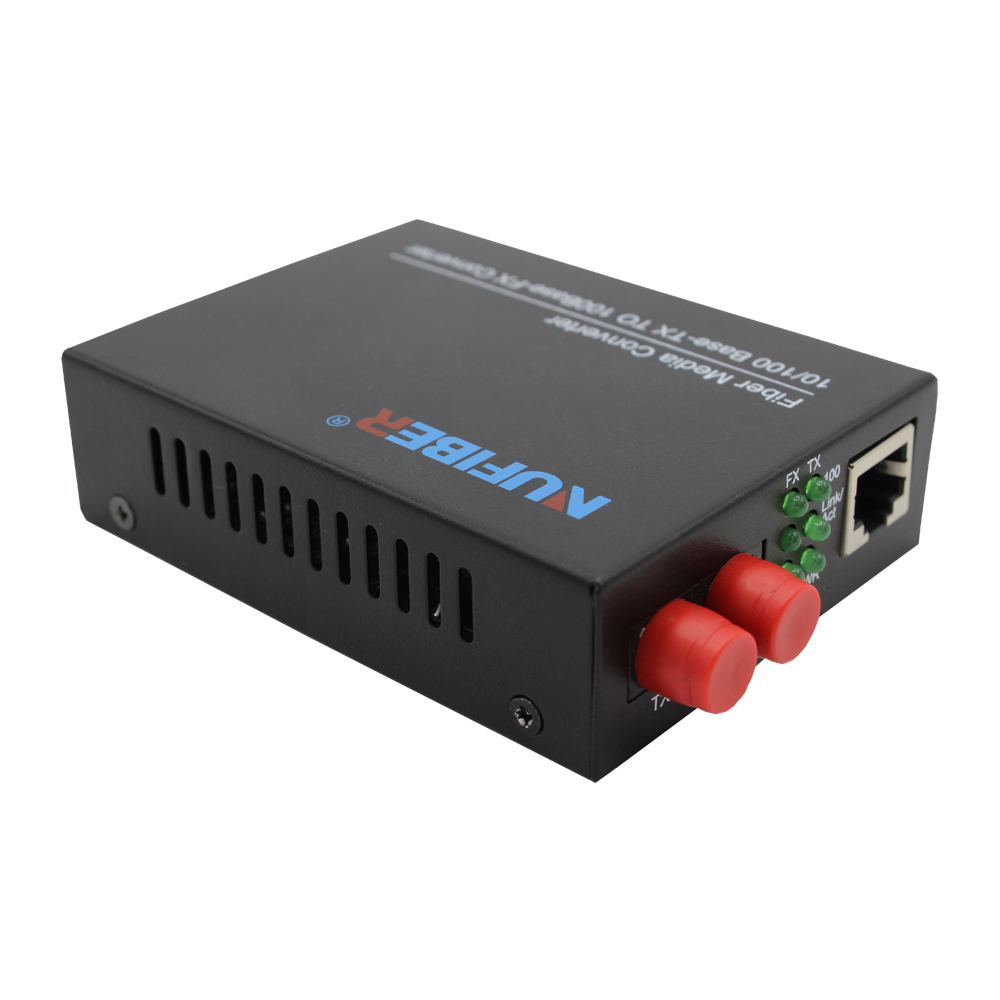

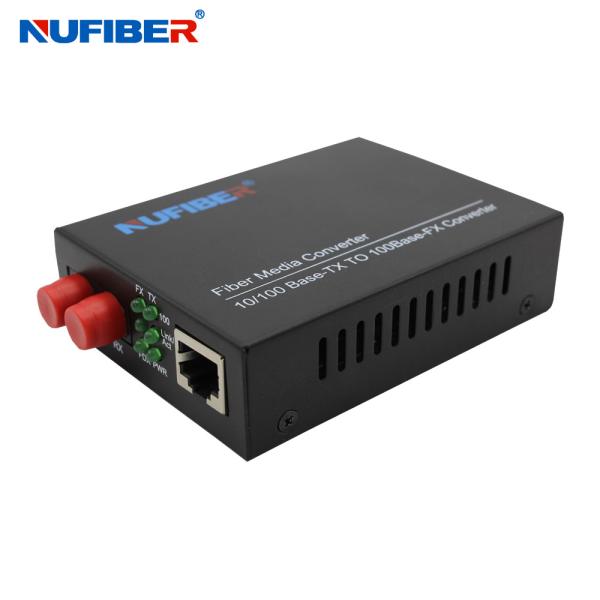

Product show
Shipping and Packing
Quality
1. 100% new materials for production, the chips are purchased from
international firms such as Marvell,Reltek,etc.
2. High quality products with ISO9001, RoHS, FCC, CE Certificates.
3. Multiple detection: Raw materials detection, three rounds of
testing for the optical and electrical properties, 24 hours aging
test, compatibility testing on switches before delivery.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of fiber media converter,
providing one-stop OEM & ODM service to all partners all over the
world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.:
CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team),
professional product engineers and continuous improvement system.
