Network Switch 10/100/1000Mpbs 8 UTP Port Gigabit Ethernet Switch
DC12V
Description:
The NF-T1008G 8-port Gigabit Ethernet Switch provides you with a
high-performance, low-cost, easy-to-use, seamless and standard
upgrade to improve old network to 1000Mbps network. Increase the
speed of your network server and backbone connections, or make
Gigabit to the desktop a reality. Power users in the home, office,
work-group, or creative production environment can now move large,
bandwidth-intensive files faster.
Key features:
▪ 8-port 10/100/1000M Gigabit Ethernet Desktop Switch
▪ Supports MAC address self-learning and auto MDI/MDIX
▪ Supports IEEE 802.3x flow control for Full Duplex mode and
back-pressure for Half Duplex mode
▪ Non-blocking switching architecture that forwards and filters
packets at full wire-speed for maximum throughput
▪ Supports MAC address auto-learning and auto-aging
▪ LED indicators for monitoring power, link, activity
▪ External power adapter supply
Technical Specifications:
| Standards and Protocols | IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP |
| Basic Function | Wire-speed Performance |
| MAC Address Auto-Learning and Auto-aging |
| IEEE802.3x flow control for Full-Duplex Mode and back-pressure for
Half-Duplex Mode |
| Back-bound Bandwidth | 16Gbps |
| MAC Address Table | 4k |
| Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port |
| Transmission Method | Store-and-Forward |
| Ports | 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
| Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED Indicators | Power, 10/100M, 1000M |
| Environment | Operating Temperature: 0°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Power | External Power Adapter |
| Size | 140mm*75mm*25mm |
Order Information:
| Model | Description |
| NF-T108F | Media Converter 8*10/100Base-Tx,external power supply. |
| NF-T1008G | Media Converter 8*10/100/1000Base-Tx,external power supply. |
| NF-T105F | Media Converter 5*10/100Base-Tx,external power supply. |
| NF-T1005G | Media Converter 5*10/100/1000Base-Tx,external power supply. |

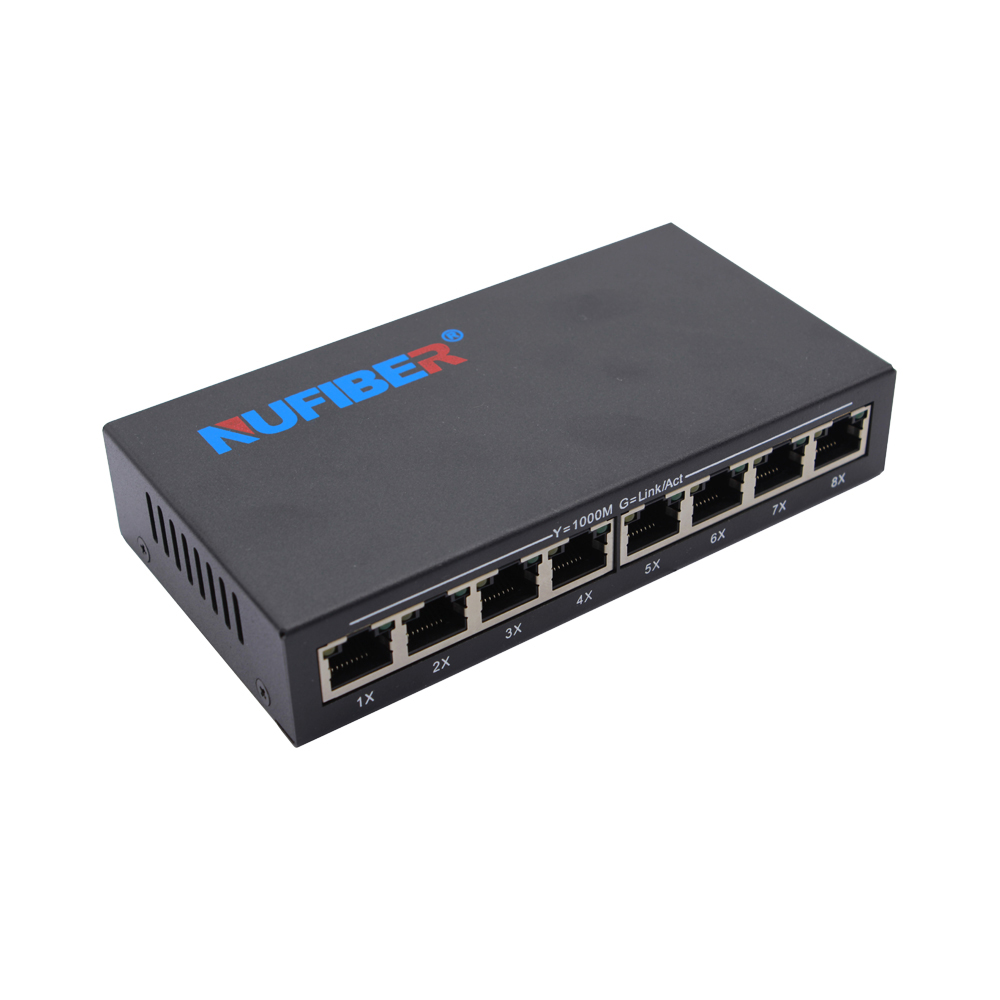

Product show:
Connection Diagram:
Factory show:
Packing & Shipping:
FAQ:
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Network Switch, providing
one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.:
CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team),
professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 12 months guarantee.
