155Mb/s SFP Transceiver Multi Mode duplex LC connector 2km 850nm/1310nm with DDM Function

Description:

NuFiber’s SFP-SX-MM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm VCSEL laser, up to 14dB link budge ensure this module SONET OC-3/SDH STM-1 2Km application.

Features:

►Up to 155Mb/s Data Links

►Hot-Pluggable

►Duplex LC connector

►Up to 550m on 50/125μm MMF

►850nm VCSEL laser transmitter

►Single +3.3V Power Supply

►Maximum Power <1W

►Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

►RoHS compliant and Lead Free

Applications:

►SONET OC-3/SDH STM-1

►Fast Ethernet

►Other Optical Links

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

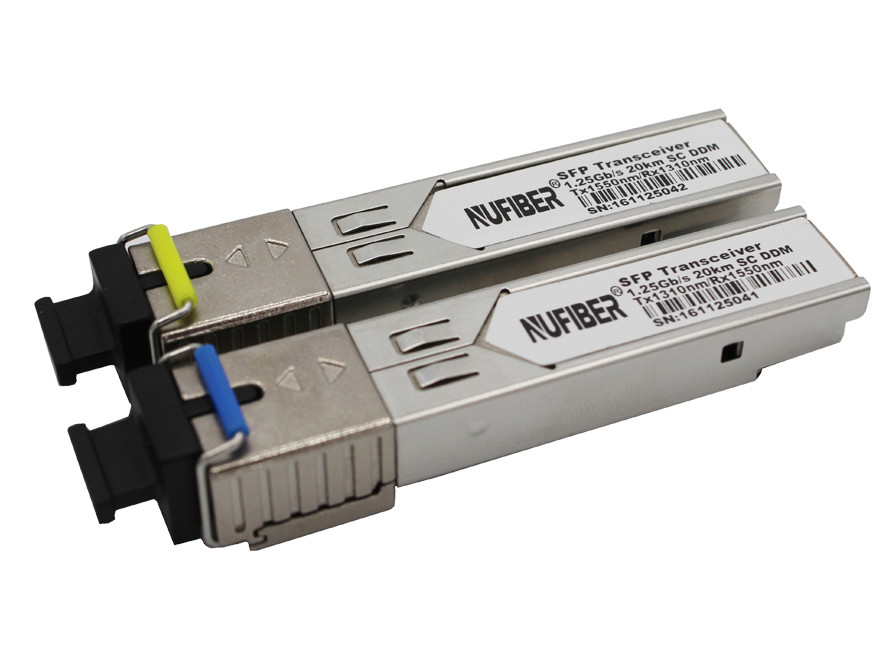

Products Show:

Packing&Shipping

Factory Show

Ordering Informations:
