    OEM ODM 10Gb/S Copper Direct Attach Cable , FTTH FTTB SFP+ Copper Cable

    High Speed 10Gb/s SFP+ Direct Attach Copper DAC cable 1-15M Customized


    Description
    Nufiber’s high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.


    Key Features

    • Support for multi-gigabit data rates up to 10.5Gbps
    • Data rates backward compatible to 1Gbps
    • Hot-pluggable SFP 20PIN footprint
    • I/O Connector designed for high speed differential signal applications
    • Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
    • Compatible with industry standard SFP cages +Switches
    • EEPROM signature can be customized.
    • Low Power Consumption < 0.5W
    • Temperature Range: 0~ 70 °C
    • RoHS-6 Compliant


    Application

    • 10G Ethernet
    • InfiniBand, Fiber Channel 4G/8G/10G
    • Sonet Multiplatform support
    • High Performance Computing Clusters
    • High End Servers
    • Metro Network Switch/Cross Connect


    Technical Parameter

    ParameterSymbolMinTypicalMaxUnit
    Operating Case TemperatureStandard Tc02570°C
    Storage TemperatureTs-4085°C
    Power Supply VoltageVcc3.133.33.47V
    Power DissipationPD0.5W
    Relative HumidityRH595%
    Data Rate10.5Gbps

    Test TypeTest ItemTargetReference
    Electrical
    Characteristics
    Differential Mode RL(SDDII)0.01<f<4.1 ; < -12+2*SQRT(f )
    4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)
    Where f is in GHz
    Measurements units: dB
    SFF 8431
    Common mode return loss
    (SCCII)
    0.01<f<2.5 ; <-7+1.6(f )
    2.5<f<11.1 ; <-3
    Where f is in GHz
    Measurements units: dB
    SFF 8431
    NEXT<-26dB from 1MHz to 11GHz/
    Cable assembly Impedence100+/ -100hm
    Rise time of 30 ps (20 %- 80 %)
    (20%~80 %)
    Insertion Loss Deviation-1dB≤ILD≤1dB
    300KHz≤f≤6GHz
    /
    Environmental
    Characteristics
    Operating Temperature-40~85°CCable operating temp.range
    Thermal ShockElectrical performance meet the
    specification requirement
    EIA-364-32D. Method A.
    TC-1. -55 10 85C,100
    cycles, 15 min, dwells
    Cyclic Temp. & HumidityElectrical performance meet the
    specification requirement
    EIA-364-31 Method III,Test
    Cond A
    Salt spray48 hours salt spraying after shell
    corrosive area less than 5%
    EIA-364-26
    Temperature LifePerformance meets the specification requirementEIA-364-17B w/ RH, Damp
    heat 85C at 85% RH for 500 hours
    Mechanical
    Characteristics
    MechanicaI VibrationPerformance meets the specification requirementEIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
    Cable Plug Retention in Cage90N Min.No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
    Cable Retention in Plug90N Min.Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
    Mechanical ShockPerformance meets the specification requirementSFF-8432 Rev 5.0
    Cable plug Insertion18N(Max.)SFF-8432 Rev 5.0
    Cable plug extraction12.5N(Max.)EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
    Durability50 Time. No evidence of physical damage250times/hour



    Ordering Information

    Part NumberData RateCable LengthWire GaugeConnectorTemp. Range
    10G-DAC-3MUp to 10.5 Gbps3m30AWGActive Copper0-70℃
    10G-DAC-5MUp to 10.5 Gbps5m24AWGActive Copper0-70℃
    10G-DAC-7MUp to 10.5 Gbps7m24AWGActive Copper0-70℃
    10G-DAC-9MUp to 10.5 Gbps9m24AWGActive Copper0-70℃
    10G-DAC-10MUp to 10.5 Gbps10m24AWGActive Copper0-70℃
    10G-DAC-12MUp to 10.5 Gbps12m24AWGActive Copper0-70℃
    10G-DAC-15MUp to 10.5 Gbps15m24AWGActive Copper0-70℃

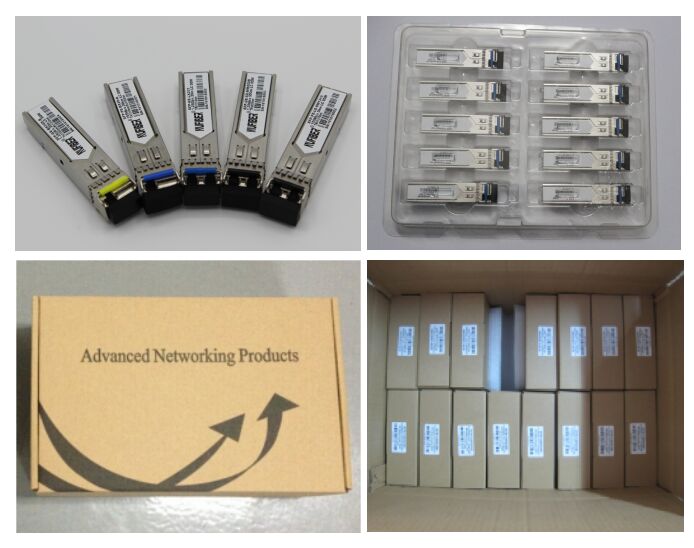

    Product Show







    Packing and Shipping
