(QSFP28-100G-SR4)

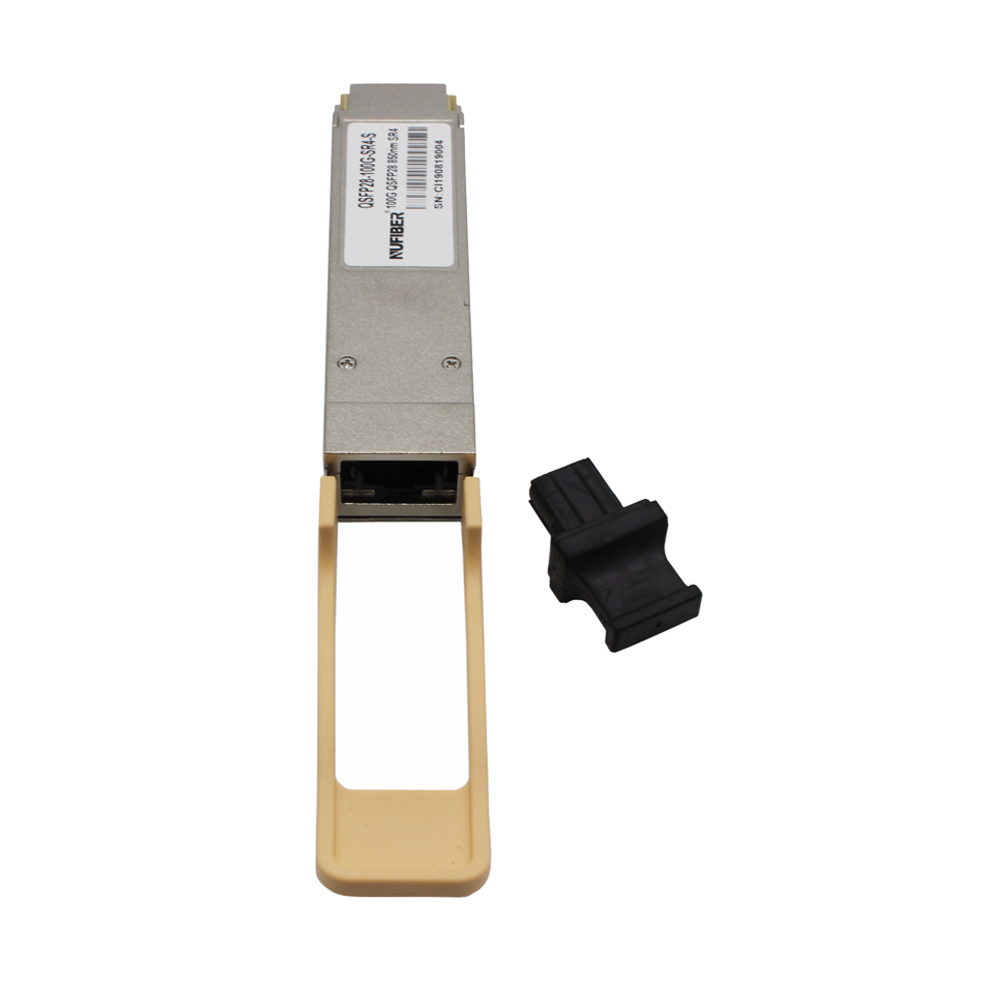

QSFP28-100G-SR4 100Gb/s QSFP28 Transceiver multimode 100m 850nm MPO/MTP

Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode

Description

The QSFP28-100G-SR4 is a transceiver module designed for 100m optical communication applications. The design is compliant to 100GbASE-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

Features

• 4 independent full-duplex channels
• Up to 27.95Gbps per channel bandwidth
• Aggregate bandwidth of > 100Gbps
• MTP/MPO optical connector
• QSFP28 MSA compliant
• Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
• Digital diagnostic capabilities
• Single +3.3V power supply operating
• Temperature range 0°C to 70°C
• RoHS Compliant Part

Applications

• Local Area Network (LAN)
• Wide Area Network (WAN)
• Ethernet switches and router applications

Optical Parameters

Ordering information

Products Show

Applications:

Certification

Packaging & Shipping

Factory show
