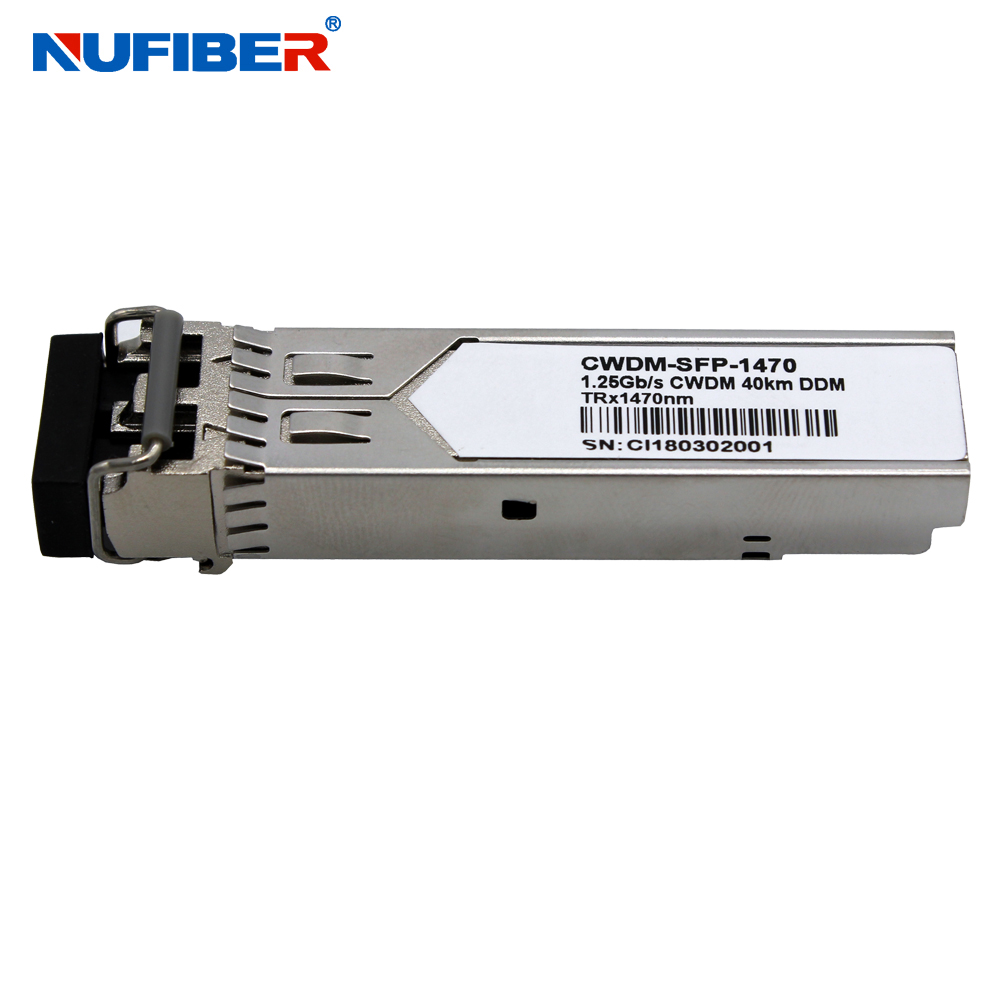

1.25Gb/s 160km CWDM SFP Transceiver Duplex LC 1470nm ~ 1610nm SM DDM

Description

The CWDM-SFP160-1470~1610 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1470nm to 1610nm, with each step 20nm.

The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The CWDM-SFP160-1470~1610 series are designed to be compliant with SFF-8472.

Features

• Data-rate of 1.25Gbps operation
• 8-Wavelength CWDM DFB LD Transmitter from
• 1470nm to 1610nm, with Step 20nm
• Compliant with SFP MSA and SFF-8472
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Hot-Pluggable SFP Footprint Duplex LC
• Operating case temperature
• Standard : 0°C to +70°C
• Extended: -20°C to +85°C
• Industrial: -40°C to +85°C

Applications

• Gigabit Ethernet
• Fiber Channel Switch Infrastructure
• Router/Server interface
• Other optical transmission systems

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Ordering Information

Products Show

Packing&Shipping

Factory Show
