10/100M Industrial Fiber Ethernet Switch
100M Industrial ethernet switch 4x10/100Base-Tx + 2x100Base-Fx with
SM Duplex SC 20km 1310nm with Din-rail Mount
Overview
NuFiber’s NF524F-SC20 Industrial Ethernet switch, With 4 Port
10/100M Ethernet ports and 2 port 100Mbps SC Fiber, for connecting
with devices like computer,switch, hub, server, etc, as well as
powering network camera, industrial VoIP phone, wireless AP and
other devices. Specially designed for harsh outdoor applications.
Its 3KV network port surge protection can adapt to harsh outdoor
environment and ensure the reliability of the uninterrupted PoE
system. Power input also chooses industry-standard types of power.
Features
• 4 Port 10/100Mbps RJ45 with Auto Uplink™ , 2 port 100Mbps Duplex
SC
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning
protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 1-Year Warranty
Technical Specification
| Product Name | 4 Port 10/100Base Industrial Ethernet Switch |
| Product Model | NF524F-SC20 |
| Interface | 4x 10/100Base-T RJ45 port + 2x 100Mbps SC Fiber |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 5.6Gbps |
| Packet Buffer Memory: 1M |
| Packet Forwarding Rate:148800pps/port |
| MAC Address Table: 4K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~58VDC (Terminal Block) |
| Other Specifications |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card |
| 1×DIN-Rail mounting kit |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.6KG |
| Packing Weight: 1.1 KG |
| Product size (L×W×H): 143.5mm× 130mm× 47mm |
| Packing size(L×W×H): 286mm× 230 mm× 60m |
| Warranty | Replacement for 1 year; |
Ordering information
| NF511F-SC20 | Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM
20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF511G-SC20 | Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber
SM 20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF512F-SC20 | Industrial 10/100M 1 fiber port + 2 RJ45 port, SC, dual fiber SM
20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF512G-SC20 | Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber
SM 20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF514F-SC20 | Industrial 10/100M 1 fiber port + 4 RJ45 port, SC, dual fiber SM
20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF514G-SC20 | Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber
SM 20km, DIN Rail type, DC10~52V, exclude power adapter |
| NF524F-SC20 | Industrial 10/100M 2 fiber port + 4 RJ45 port, SC, dual fiber SM
20km, DIN Rail type, DC10~52V, exclude power adapter |

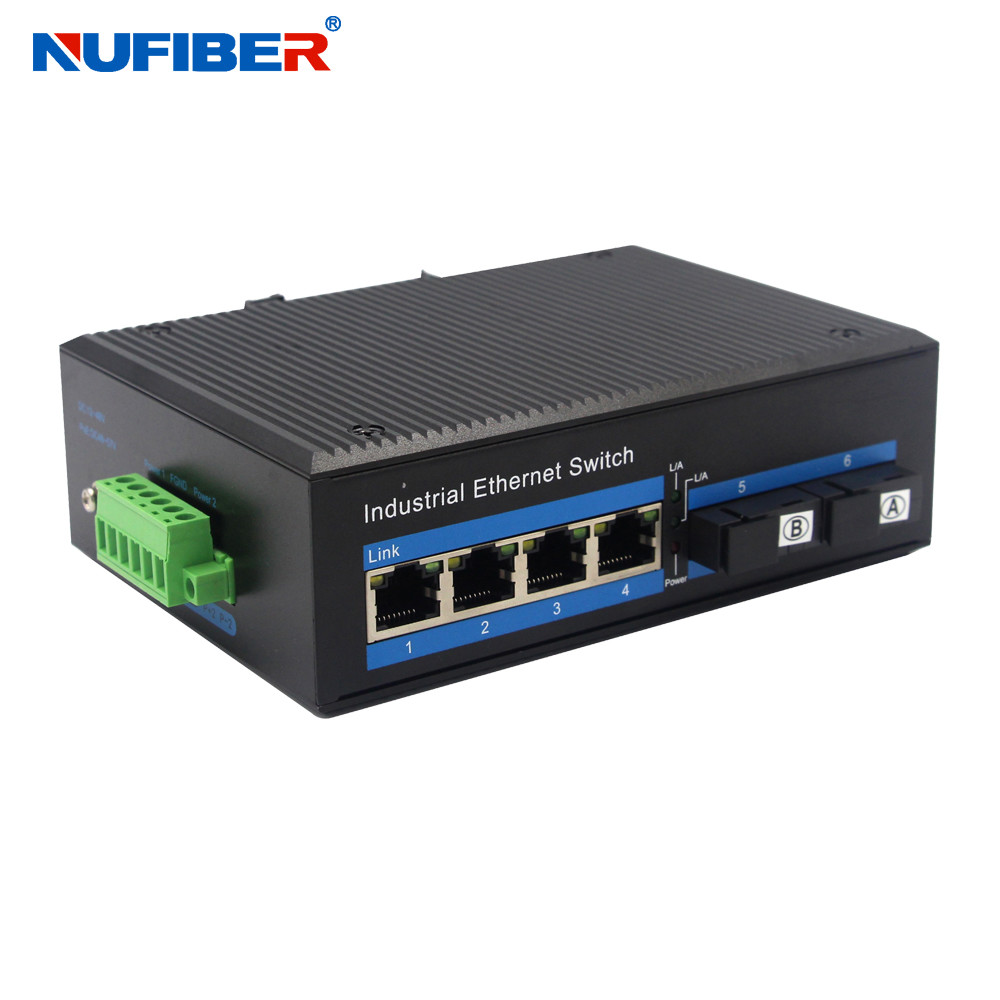

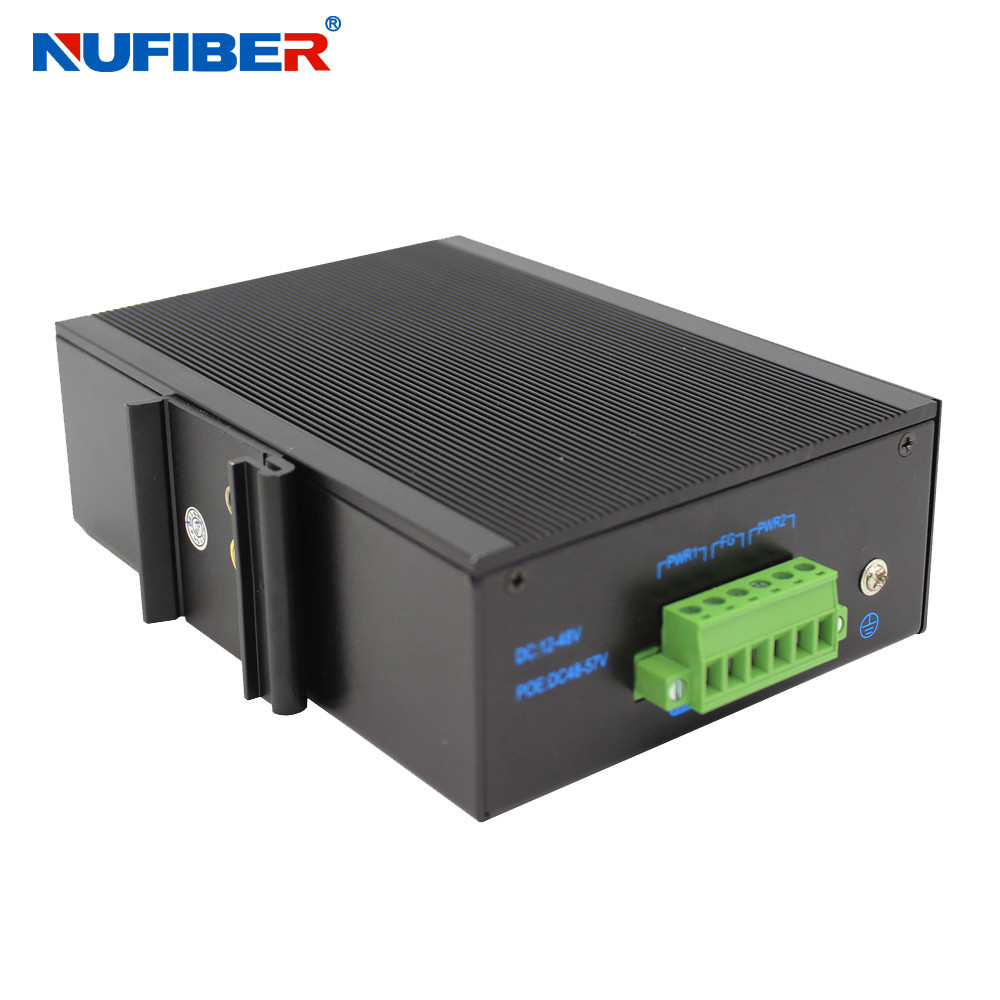

Product Picture
