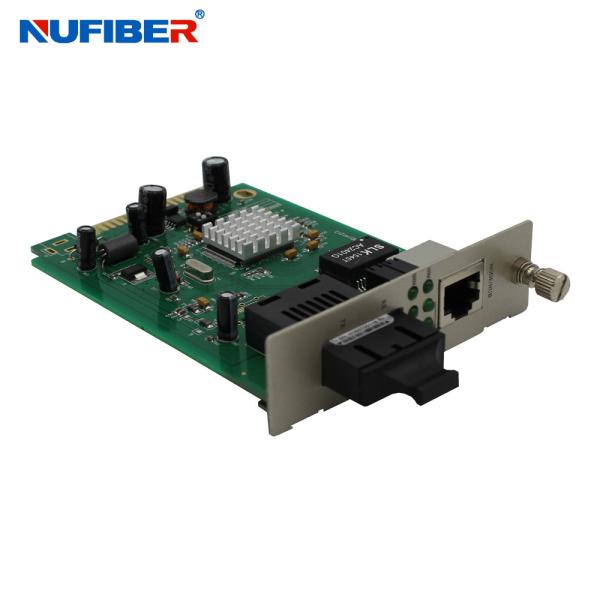

10/100/1000Mbps Card Type Fiber Media Converter 10/100/1000Base-TX
to1000Base-FX Single-Mode Dual Fiber SC NF-K1000-S20
Overview
The NF-K1000LX Series Card Type Gigabit Ethernet Media Converters
are designed to transmit and receive 10/100/1000Mbps data over
optical fiber. The electrical interface will Auto-Negotiate to a
100 Mbps or 1000Mbps Ethernet rate without any adjustments. The
optical interface operates at a 1000 Mbps Ethernet rate. Both are
environmentally hardened to operate in extreme temperatures. LED
indicators are provided for confirming equipment operating status.
It can be used as a slide-in module to 19-inch 16-slot media
converter chassis NF-RACK1600D-2U. These media chassis can assist
in producing the power for the NF-K1000 to maintain the fiber-optic
network at one location. As the Gigabit Media Converter fully
complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE
802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit
media conversion installation is quite quick and easy with its plug
and play feature. The NF-K1000 also supports flow control and back
pressure in half-duplex to eliminate packet loss.
Features
-10/100/1000Mbps Ethernet
-10/100/1000 BASE-T/TX electrical port
-1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps,
full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 2km for Multi mode;Up to 120km for Single mode
-Voltage transient protection on all power and signal input.output
lines provides unconditional protection from power surges and other
voltage transient events
-No in-field optical adjustments required
-LED Indicators
Applications
--Access Control Systems
--Building and Environmental Control Systems
--Tamper Switch
--10/100/1000 Mbps Ethernet Media Converter
--High Speed Computer Links
Parameter
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX |
| Optic Wavelength | NF-K1000SX: 850nm NF-K1000LX20: 1310nm NF-K1000-SFP: N/A NF-K1000LX20A:TX:1310nm/RX:1550nm NF-K1000LX20B:TX:1550nm/RX:1310nm |
| Transmission Distance | Multimode: 2km Single mode:10km~120km |
| Port | Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
| Led Indicators | Optical Link/Data Activity Electrical Link/Data Activity |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
Data
| Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
| Power Supply | External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) MTBF: >100,000 hours |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |
