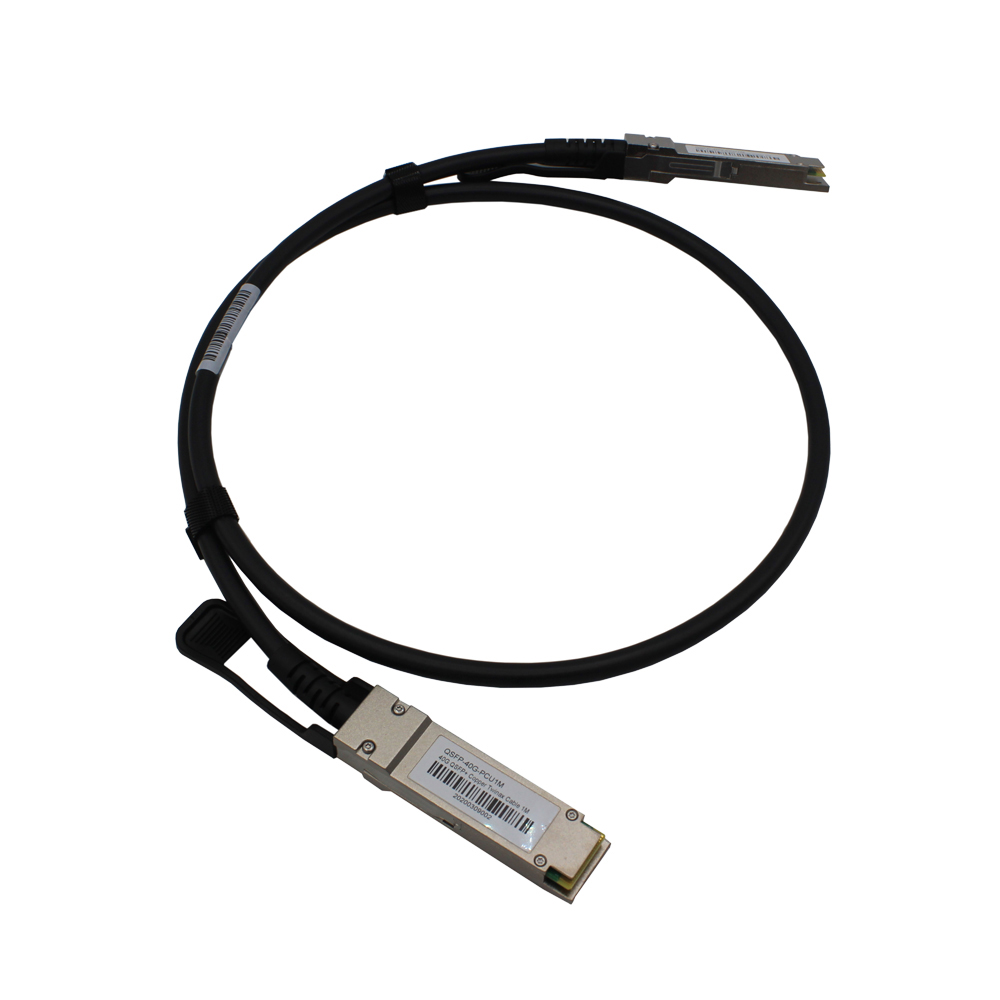

High Speed 40Gb/s QSFP to QSFP Passive Direct Attach Copper cable 2 Meters Compatible with Huawei QSFP-QSFP-D2M

Description
QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.


Key Features

• Compliant QSFP MSA specifications
• Fully compatible with IEEE802.3ba and Infiniband QDR specifications
• 40 Gb/s total bandwidth
• 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
• 100 ohm differential impedance system
• Single 3.3V power supply, low power consumption, <1.5W
• Low Near-End Crosstalk(NEXT)
• Operating case temperature: -40 to 85°C
• All-metal housing for superior EMI performance
• Precision process control for minimization of pair-to-pair skew
• AC coupling of PECL signals
• EEPROM for cable signature & system communications
• 30 AWG to 24 AWG cable sizes available
• RoHS compliant

Application

• Data

• Servers

  Networked storage systems

  Routers

  External storage systems

  Data Center networking

• Communications

• Switches

  Routers

• Industry Standards

• InfiniBand Trade Association (IBTA)

  IEEE802.3ba

  40Gigabit Ethernet ( 40G BASE – CR4)

Technical Parameter

Mechanical Dimensions

Product Show
