4*10/100Base-Tx to 1*100Base-Fx SM BiDi SC 1310nm/1550nm 20km optical fiber ethernet switch NF-S104C20A/B

Description

This Fiber Ethernet switch has 4 10/100M UTP ports and one 100M fiber port. It converts 10/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.

Key Features

1. 4 10/100Base-T RJ45 ports and 1 SC fiber port.

2. It can convert Optical－Electric Ethernet signals between 10/100M UTP ports and 100M optical fiber ports and switch Ethernet signals between port and port.

3. Converts optical/electrical Ethernet signals between 10/100M UTP ports and 100M optical fiber ports

4. 10/100M auto-negotiation in TP port, maximum speed to 20/200M (full-duplex)

5. Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

6. Store and forward switching mechanism

7. Supports MAC self-learning

8. Automatic MDI/MDI-X configuration

9. LED link status indicator for activity, full/half duplex, speed, and power on diagnostic function

Technical Specifications

Connection Diagram

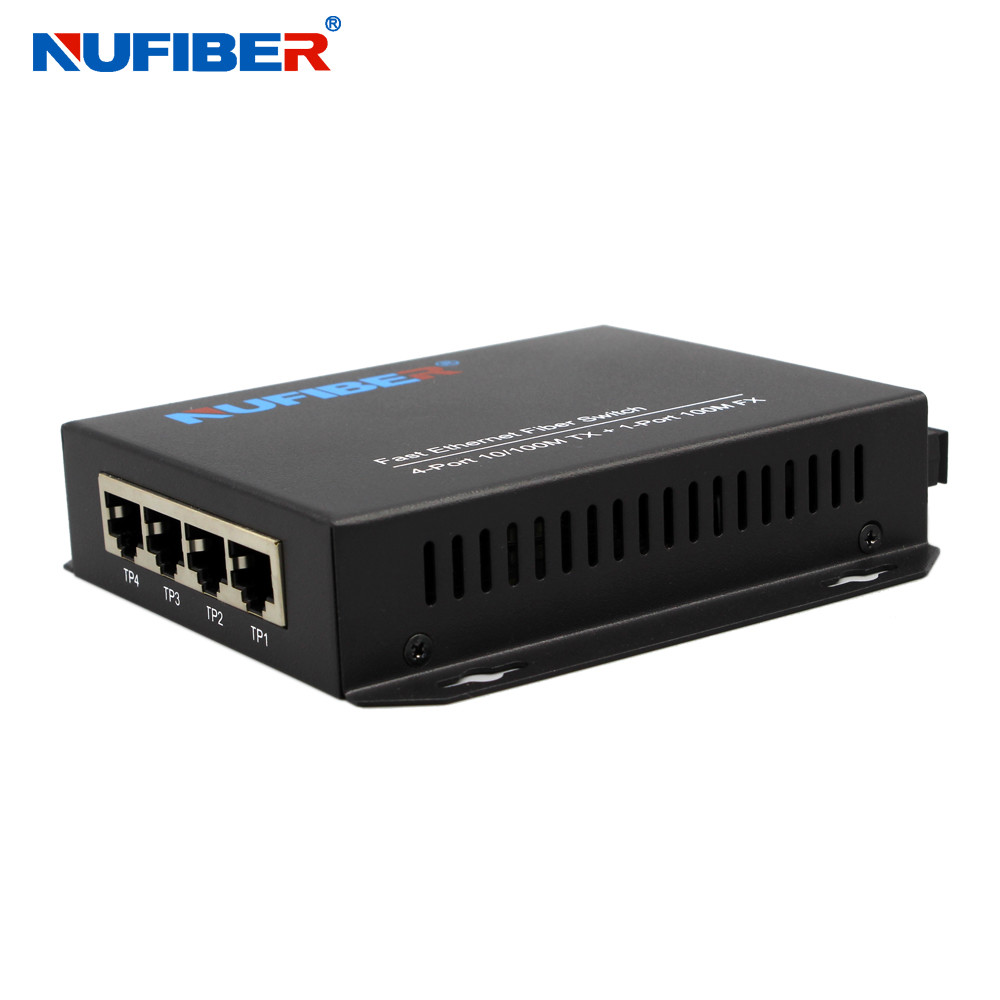

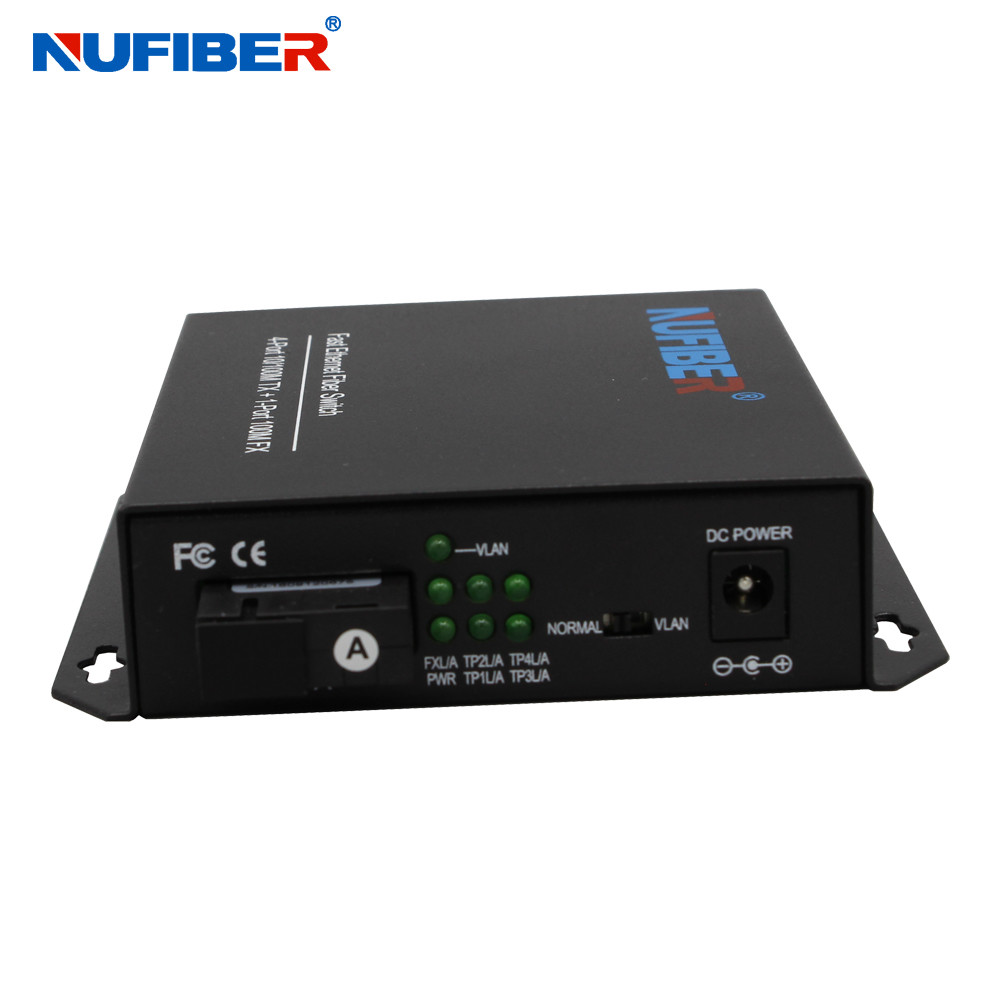

Product Show

Factory Show

Packing & Shipping:
