1.25G SFP 1310nm/1550nm 3km SC Compatible With Cisco Optical Transceiver

Description

NuFiber’s GE-BX03-SM1310S and GE-BX20-SM1550STransceivers are a high performance, cost effective module which have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 3km application.

Features

• Up to 1.25Gb/s Data Links
• Hot-Pluggable
• Single SC connector
• Up to 3km on 9/125μm SMF
• 1310nm FP laser transmitter
• 1550nm PIN photo-detector
• Single +3.3V Power Supply
• Monitoring Interface Compliant with SFF-8472
• Maximum Power <1W
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
• RoHS compliant and Lead Free

Applications

• 1000Base-LX Ethernet
• Metro/Access Networks
• 1×Fiber Channel
• Other Optical Links

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

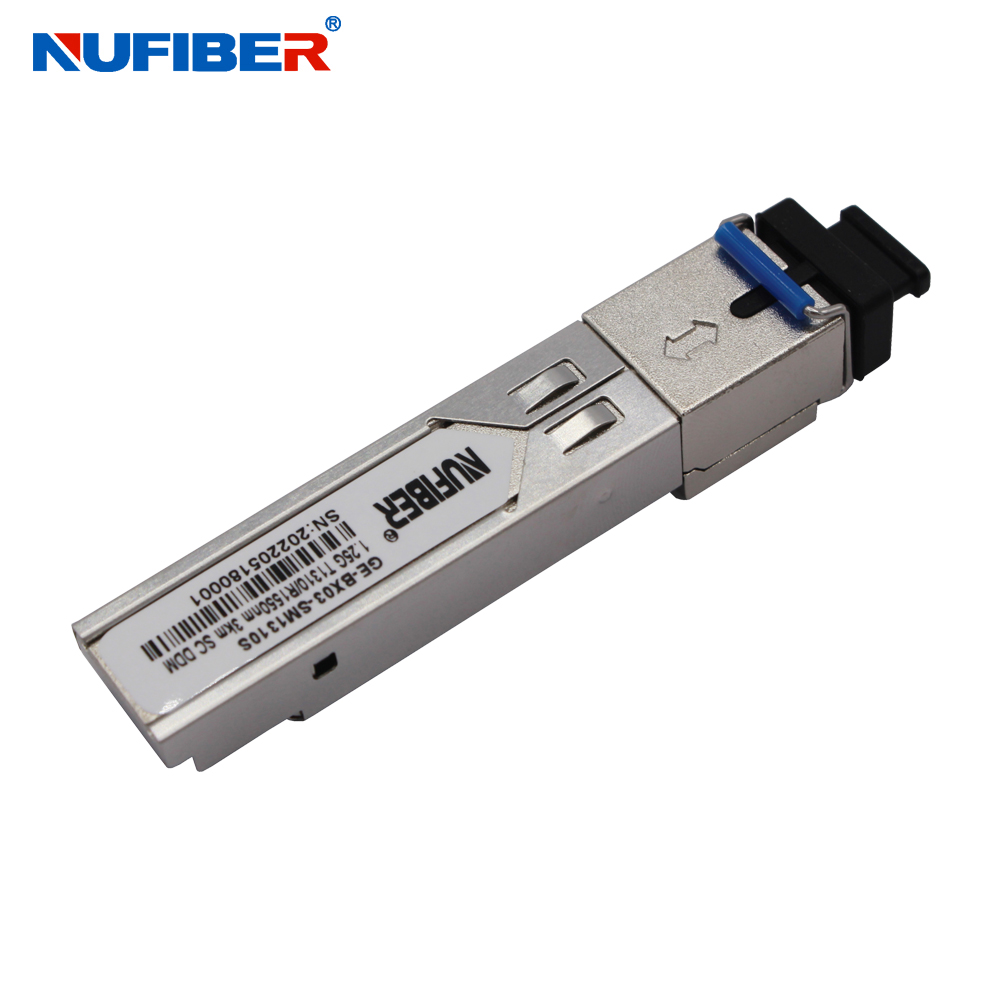

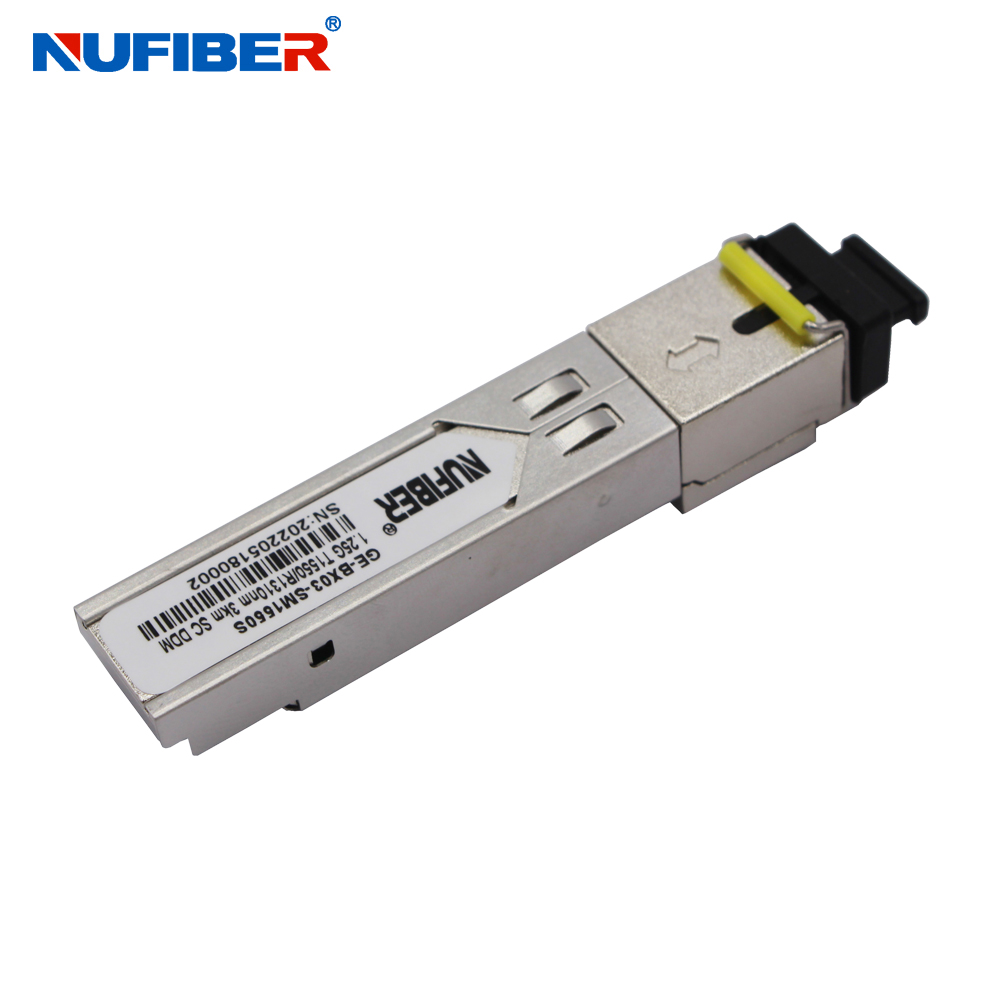

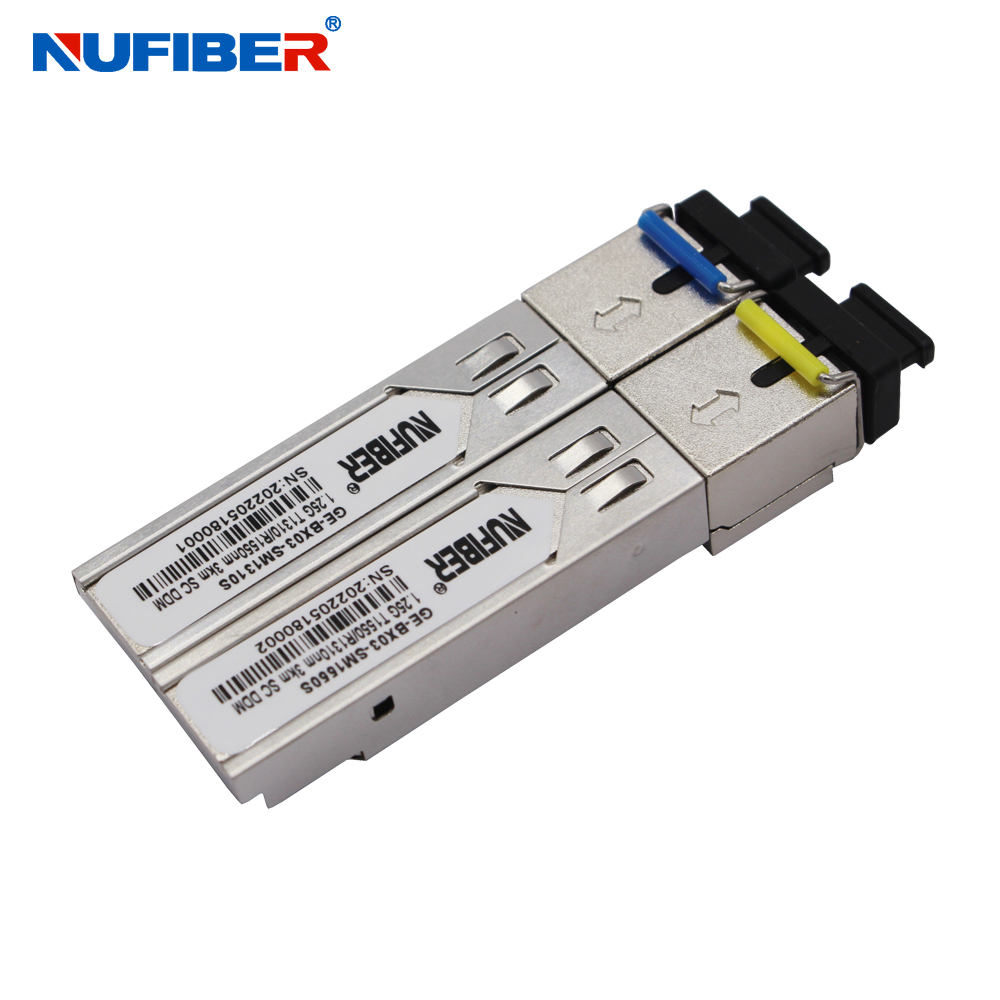

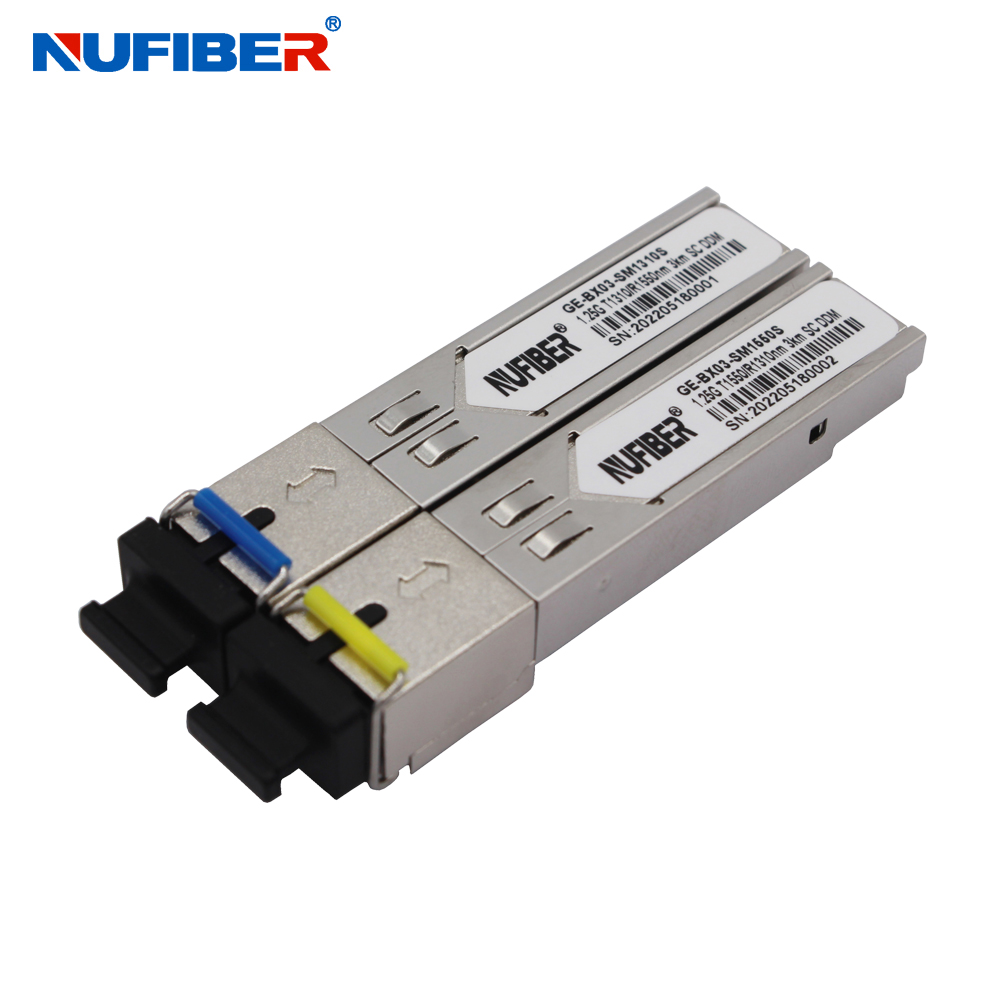

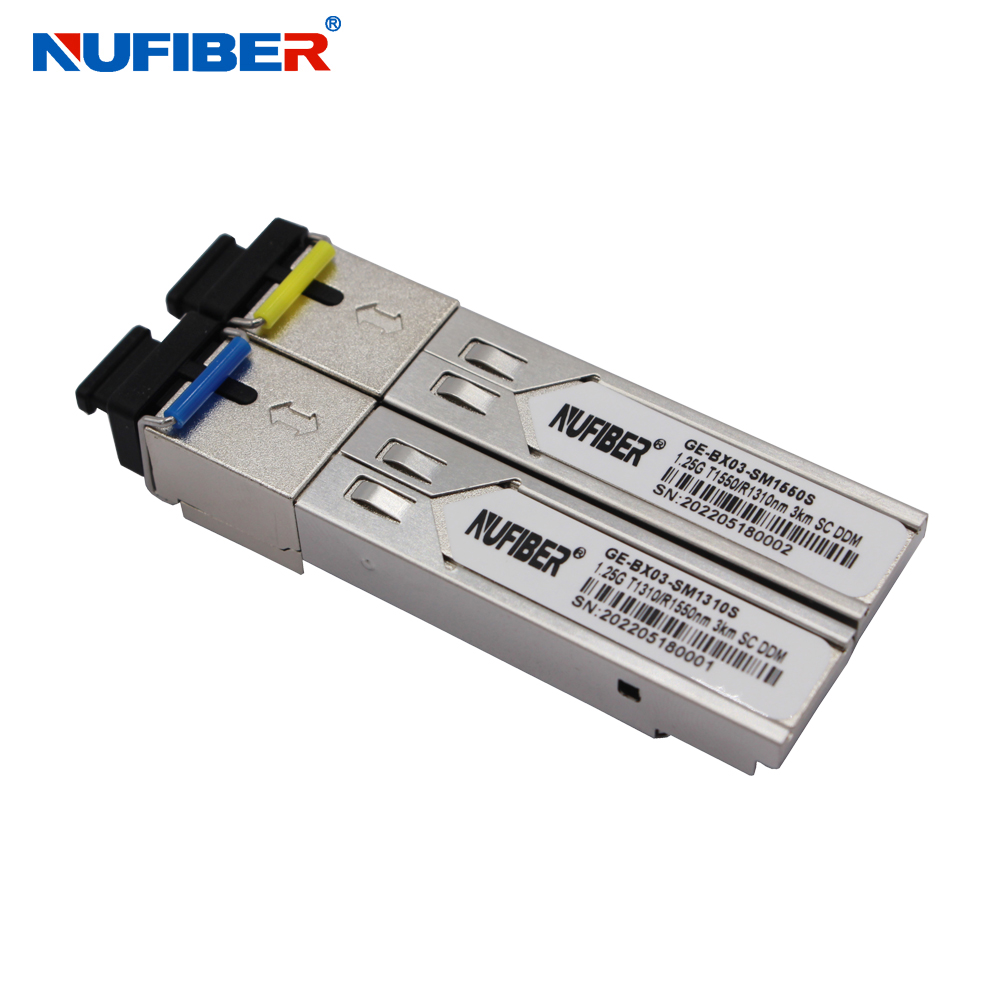

Product Show

Packaing & Shipping

Factory Show

Shenzhen Nufiber Systems Technology Co., Ltd. Established in June, 2003,is a professional manufacturer and exporter which mainly engaged in fiber optic equipment and HD network transmission devices. Headquartered in Shenzhen, it also has offices in Hangzhou, Kunming. The business and customers are located in more than 20 countries and regions.

We are committed to providing customers around the world to provide comprehensive products, the latest technology and professional services to help customers to build high-quality network platform, combined with the actual needs of customers, and providing individualized to meet customer demand for a comprehensive solution.

In recently years, relying on the R & D strength of itself and Huazhong University of Science and Technology, the company has owned many creative products and patented technology such as Optical Transceiver Module, Fiber Media Converters, Industrial Switches, Digital video fiber converter, IP Ethernet Coaxial extender, POE switch, DVI/HDMI fiber optic extender and others. Now, with the growth of the industry development, it has maintained annual average increasing rate of 30%. At present, the company has been the famous supplier in HD transmission industry. It has lots of customers and cases in security monitoring and professional audio and visual industry…

Now, the company has quickly stood among the forefront of domestic HD transmission suppliers with strong R & D strength and competitive marketplace. In the future, the company will keep sustainable innovation to promote HD transmission change, and create new business value for our users.
