    10/100/1000M POE Powered Switch SM SC 20km Fiber To Copper Media Converter With POE

    Ask Lasest Price
    Brand Name : Nufiber
    Model Number : NF-PSE5201G-C20A/B
    Certification : CE RoHS FCC
    Payment Terms : T/T, Western Union
    Supply Ability : 8000piece/month
    Delivery Time : 3~4working day after payment
    • Product Details
    • Company Profile

    10/100/1000M POE Powered Switch SM SC 20km Fiber To Copper Media Converter With POE

    10/100/1000M POE Powered Switch SM SC 20km Fiber To Copper Media Converter With POE


    Description:

    POE Media converter with 1x10/100/1000Mbps Auto-Negotiation POE RJ45 and 1x100/1000Mbps Fiber port. The products support IEEE802.3af/at power supply standard, maximum output power Up to 25.5 Watts for POE, Plug and Play, no need to convert by software and network protocol,Easy installation and use.Adopt No fan, low power design. Meet the needs of the site and provide a reliable and convenient solution for the network of Ethernet devices for users.The product apply with FCC and CE standards.


    Features:

    1, Support IEEE802.3 10BASE-T;

    IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;

    IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af; IEEE802.3at;

    2, Support 10/100/1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;

    3, Transmission distance:

    Multimode(MM): Up to 0.55KM Max;

    Singlemode(SM): Up to 120KM Max;

    4, POE power pin: 1/2+,3/6- (Option 4/5+,7/8-);

    5, RJ45 port support direct and cross automatic recognition function (AUTO-MDIX);

    6, Fanless design, its own low heat, work stability and durability stronger;

    7, Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards;


    Spicification

    StandardIEEE802.3i 10BASE-T
    IEEE802.3u 100BASE-TX
    IEEE802.3z 1000BASE-TX
    IEEE802.3x Flow Control
    IEEE802.3af Power over Ethernet
    PoE power

    15.4W per port (IEEE802.3af)

    25.5W per port (IEEE802.3at)

    Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
    Cable: UTP cat.5 or higher
    Fiber typeMulti mode(MM): 62.5/125m.50/125m
    Single mode(SM): 9/125m
    DistanceMulti mode & Dual Fiber 550M
    Single mode & Single Fiber:20/40/60/80/120KM
    Data rate10/100/1000Mpbs
    Connector1 RJ45 +1 SC/FC/ST/LC(SFP Slot)
    Wavelength1310nm 1490nm 1550nm
    Diagnostic LEDPower Link/Activity
    PowerDC52V/0.7A/36W
    Power Consumption<8w
    Temperature

    0~50℃(Operating)

    -20~70℃(Storage)

    Humidity5%~90%
    Dimension90x70x26mm

    Ordering Information

    ModelDescriptionFiber ModeWavelengthDistanceConnector
    NF-PSE5201-C0210/100Base-Tx to 100Base-FXMMFTRx:850nm2kmSC
    or TRx:1310nm
    NF-PSE5201-C2010/100Base-Tx to 100Base-FXSMFTRx:1310nm20 kmSC
    NF-PSE5201-C20A/B10/100Base-Tx to 100Base-FXSMFTx:1310nm/Rx1550nm20 kmSC
    Tx:1550nm/Rx1310nm
    NF-PSE5201-SFP10/100Base-Tx to 100Base-FXSFP850nm/1310nm/1550nm0~120kmLC/SC
    NF-PSE5201G-C0210/100/1000Base-Tx to 1000Base-FXMMFTRx:850nm2kmSC
    or TRx:1310nm
    NF-PSE5201G-C2010/100/1000Base-Tx to 1000Base-FXSMFTRx:1310nm20 kmSC
    NF-PSE5201G-C20A/B10/100/1000Base-Tx to 1000Base-FXSMFTx:1310nm/Rx1550nm20 kmSC
    NF-PSE6301-SFP10/100/1000Base-Tx to 100/1000Base-FXSFP850nm/1310nm/1550nm0~120kmLC/SC


    Connection Diagram

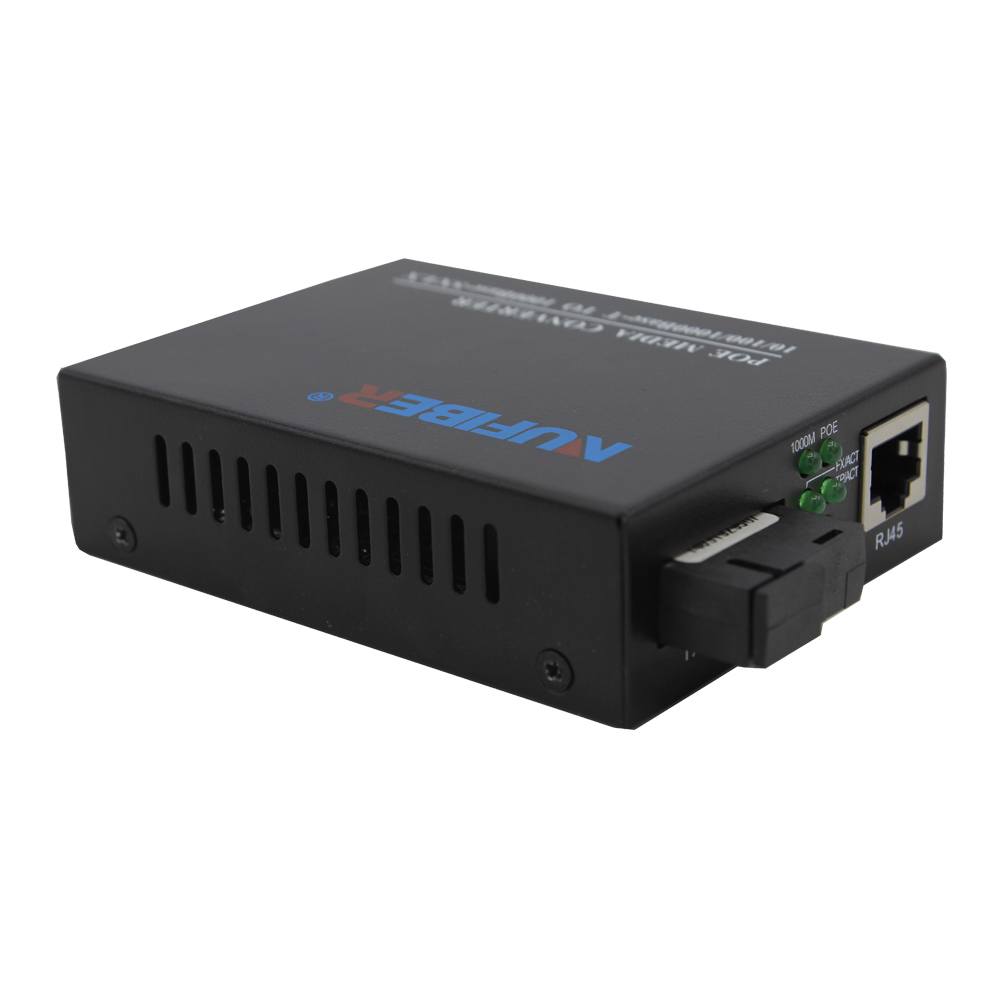

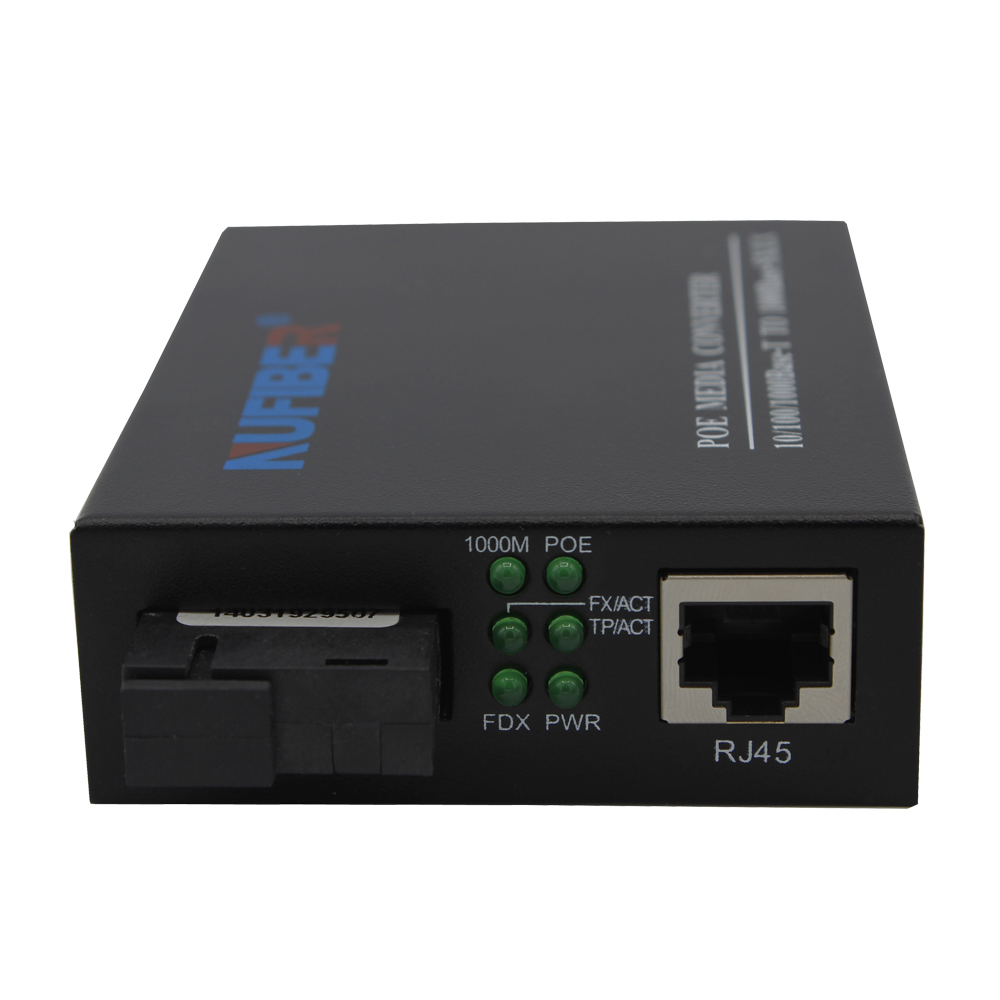

    Product Show

    Connection Diagram


    Packing Methods

    Shipping Methods


    Factory Show




    FAQ
