Industrial POE switch 10/100M 5port RJ45 UTP Din-rail DC48V power
POE Ethernet network switch
Overview
NuFiber’s NF505FP Industrial Ethernet witch,With 5 Port 10/100Mbps
Ethernet ports ,for connecting with devices like computer, switch,
hub, server, etc, as well as powering network camera, industrial
VoIP phone, wireless AP and other devices. Specially designed for
harsh outdoor applications. Its 3KV network port surge protection
can adapt to harsh outdoor environment and ensure the reliability
of the uninterrupted PoE system. Power input also chooses
industry-standard types of power.
Features
• 4 Port 10/100Mbps RJ45 with POE; 1-port Uplink™ .
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning
protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 5-Year Warranty
Technical Specification
| Product Name | 5 Port 10/100Base Industrial POE Switch |
| Product Model | NF505FP |
| Interface | 4x 10/100Base-T RJ45 POE port; 1x UPlink port |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Performance Specification | Bandwidth: 1Gbps |
| Packet Buffer Memory: 512K |
| Packet Forwarding Rate:148800pps/port |
| MAC Address Table: 1K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~57VDC (Terminal Block) |
| Other Specifications |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card |
| 1×DIN-Rail mounting kit |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.355KG |
| Packing Weight: 0.875 KG |
| Product size (L×W×H): 118mm× 86mm× 34mm |
| Packing size(L×W×H): 183mm x 131mm x 100mm |
| Warranty | 3-years |
Ordering information
| NF505F | Industrial 5x10/100Mbps RJ45 ports network switch, DIN Rail type,
DC10~48V |
| NF505G | Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail
type, DC10~48V |
| NF508F | Industrial 8x10/100Mbps RJ45 ports network switch, DIN Rail type,
DC10~48V |
| NF508G | Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail
type, DC10~48V |

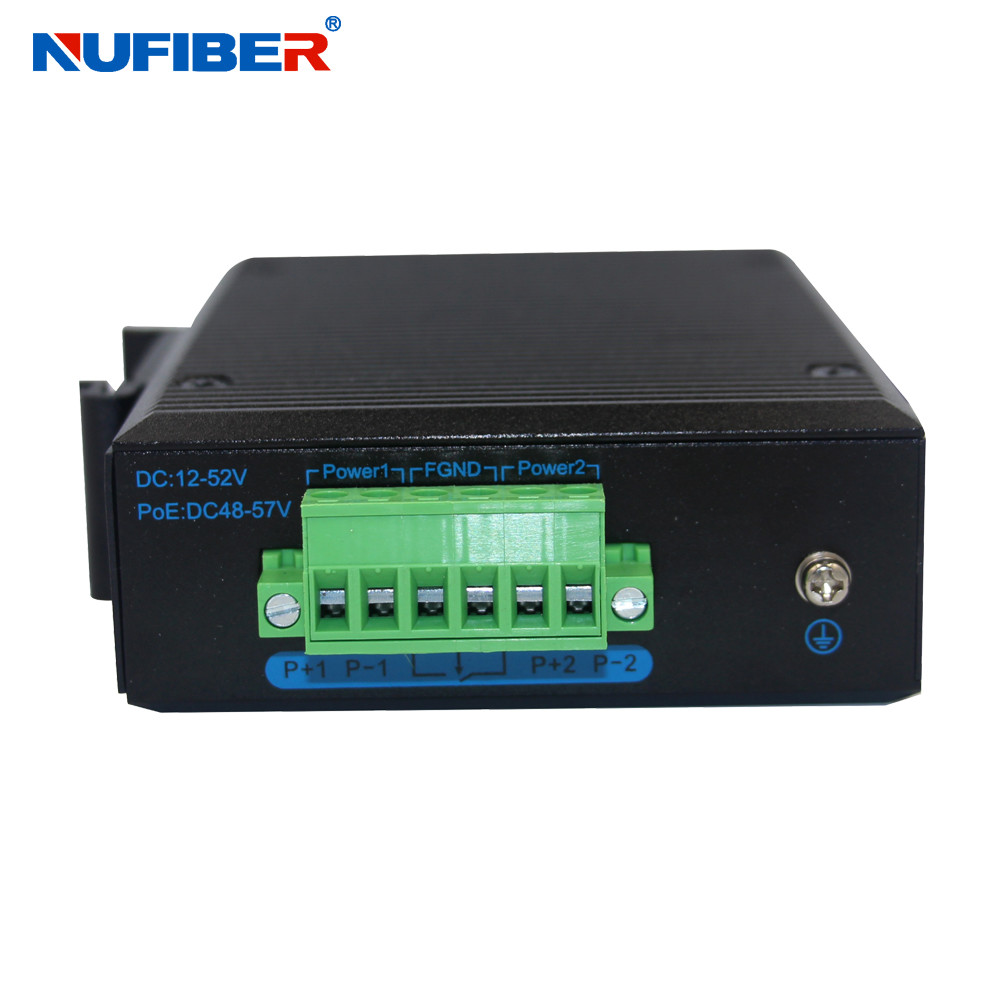

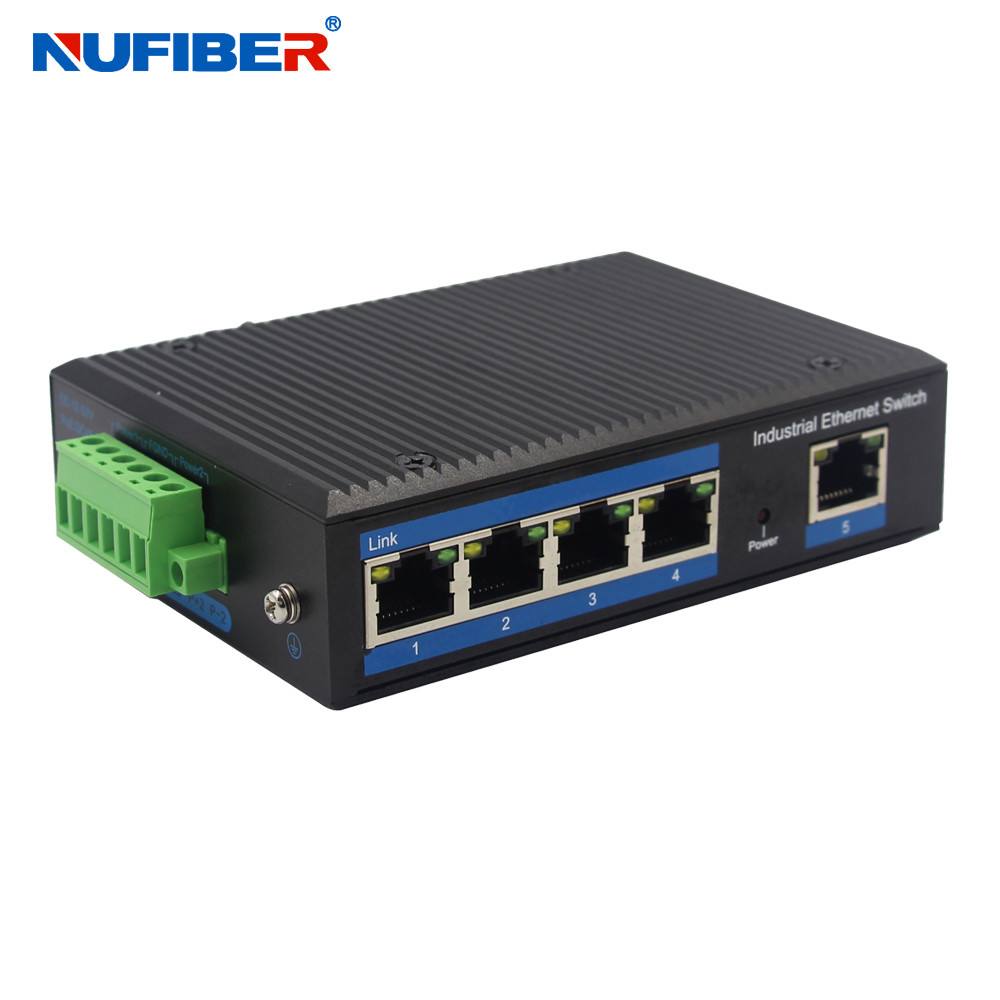

Product Picture
